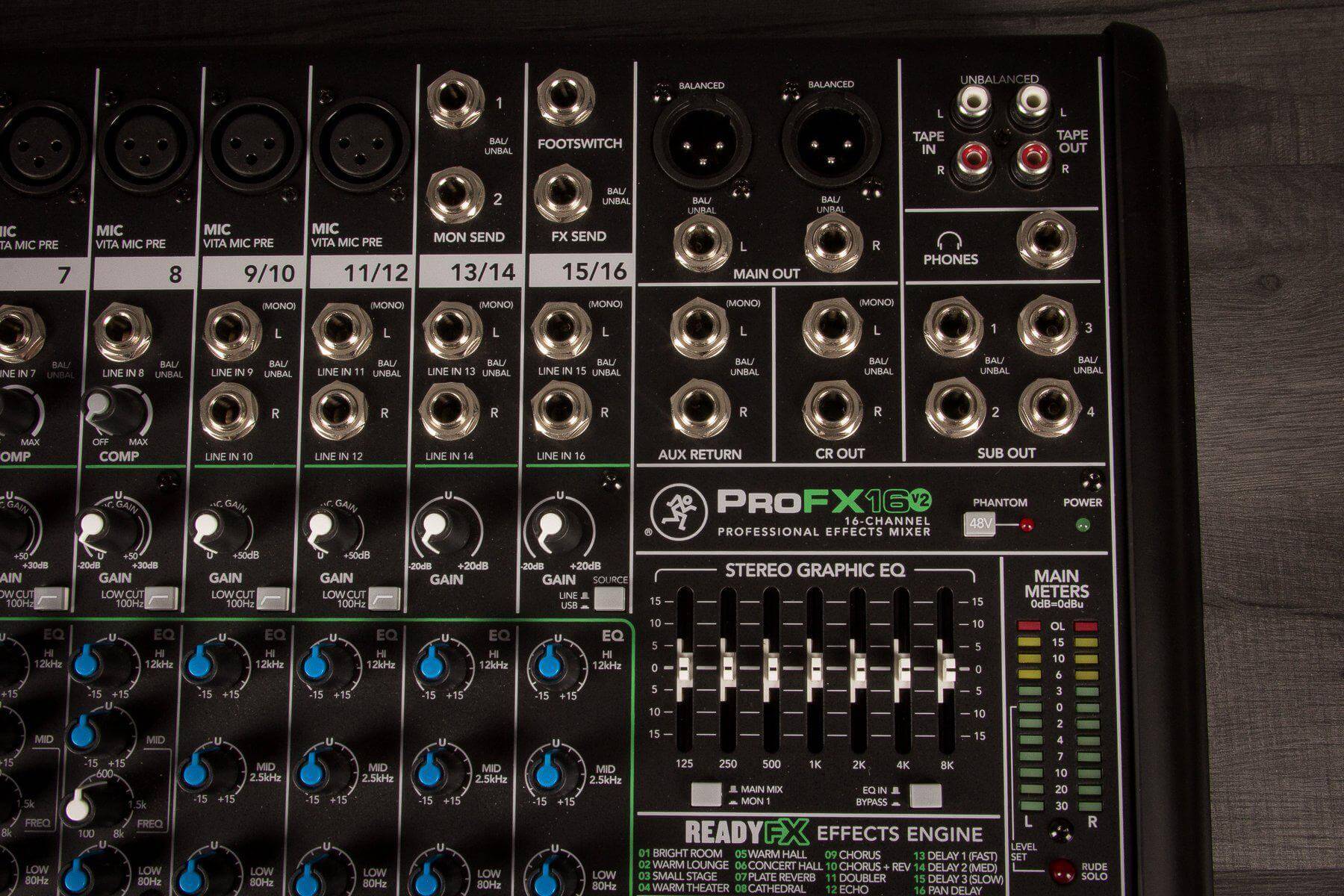

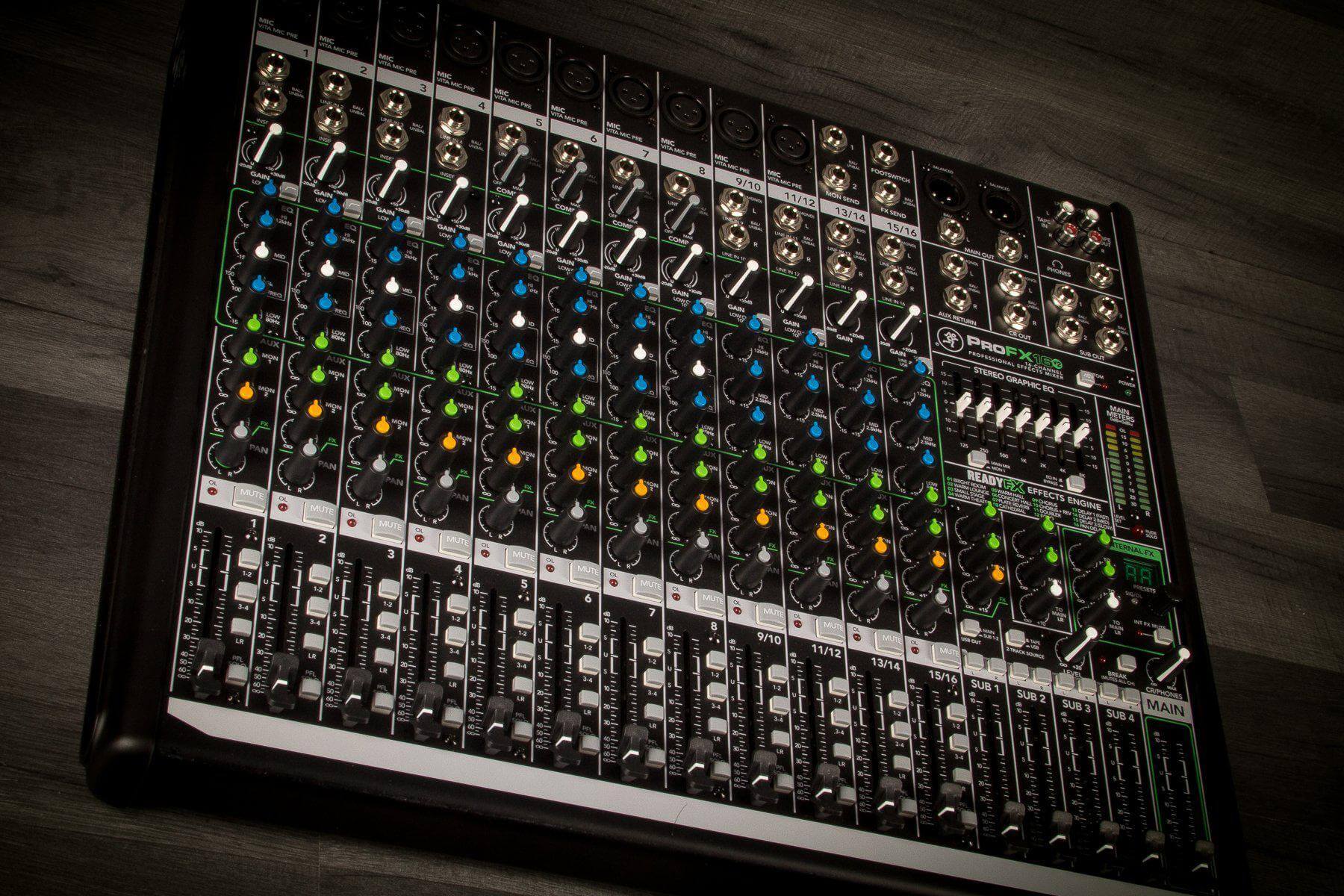

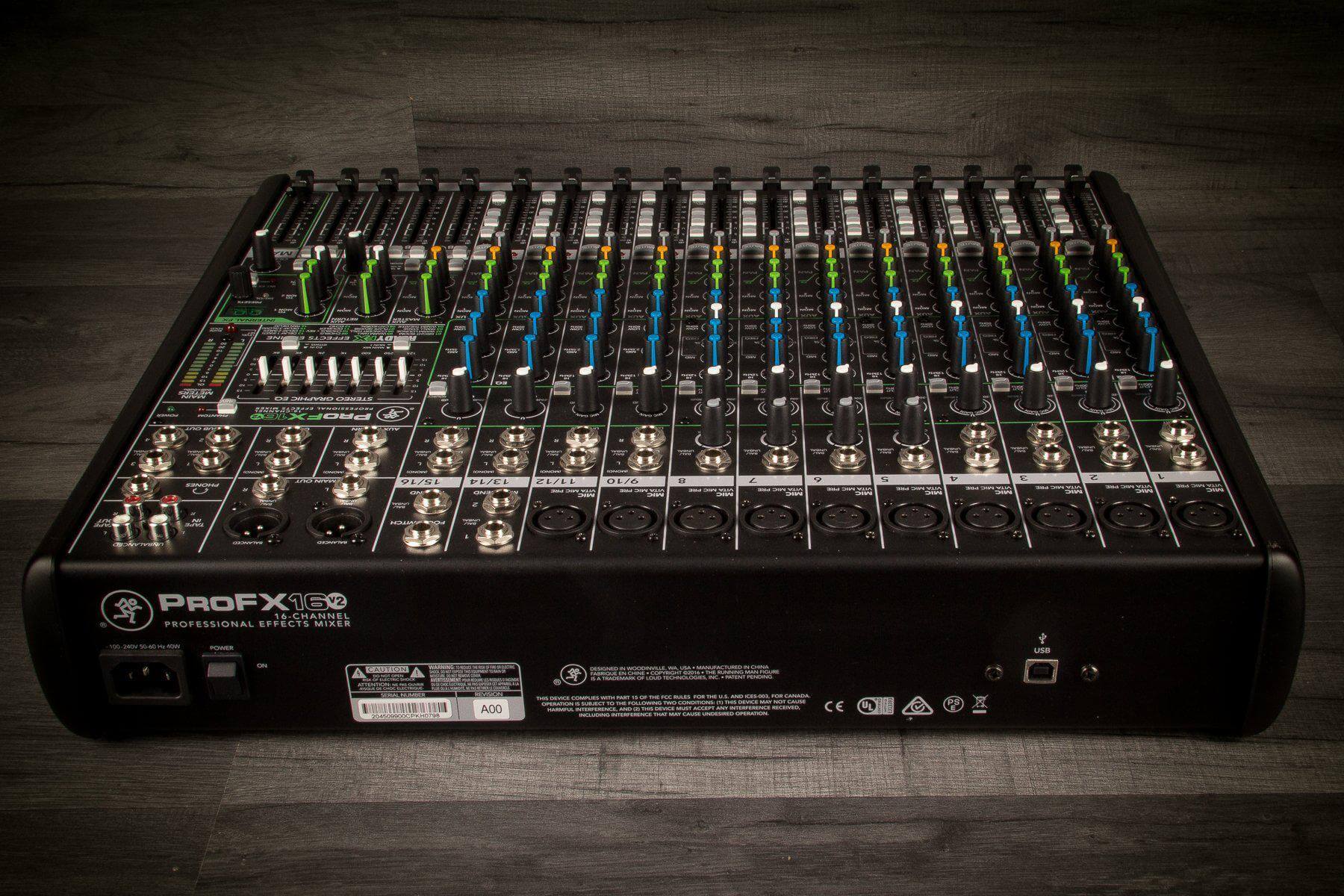

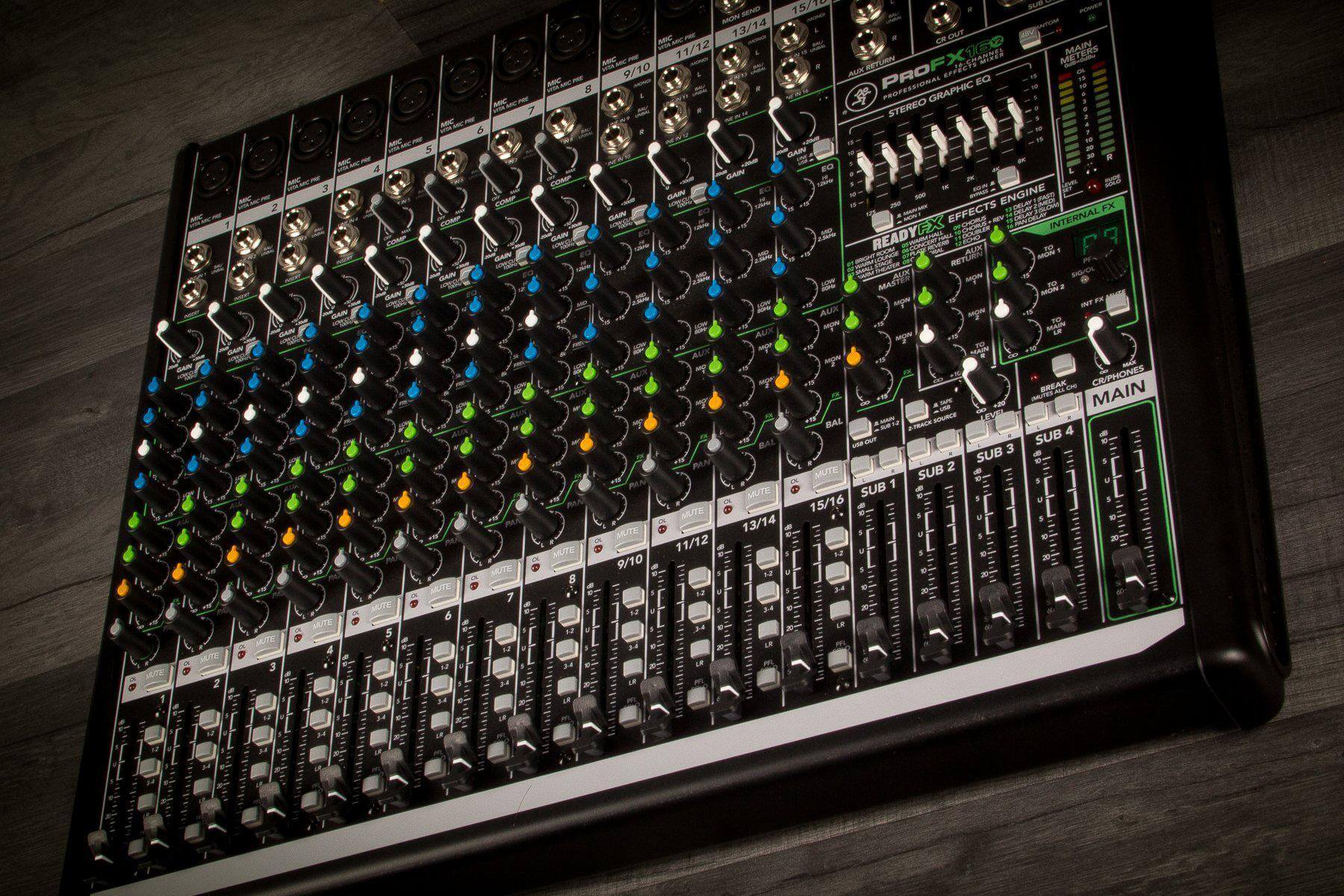

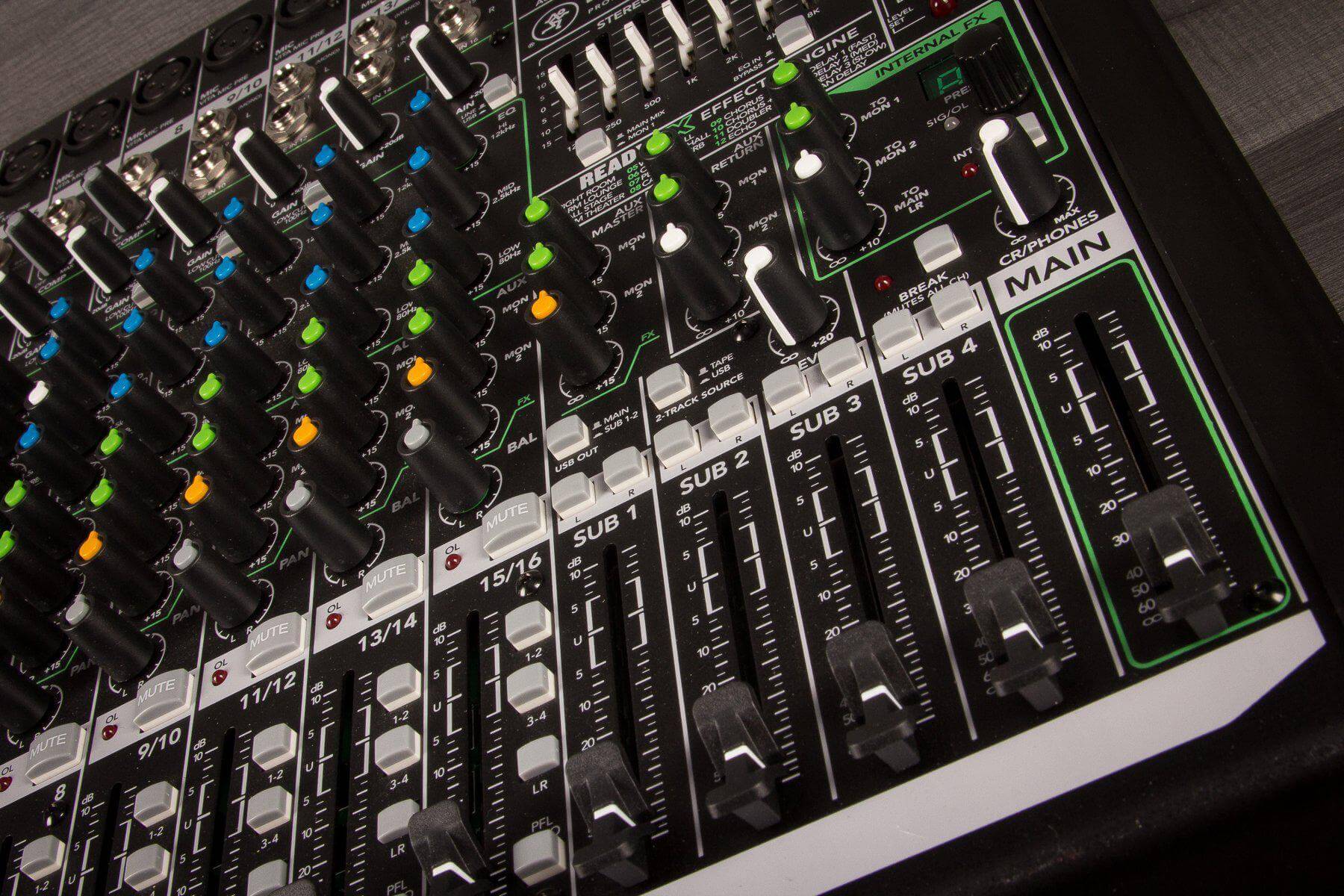

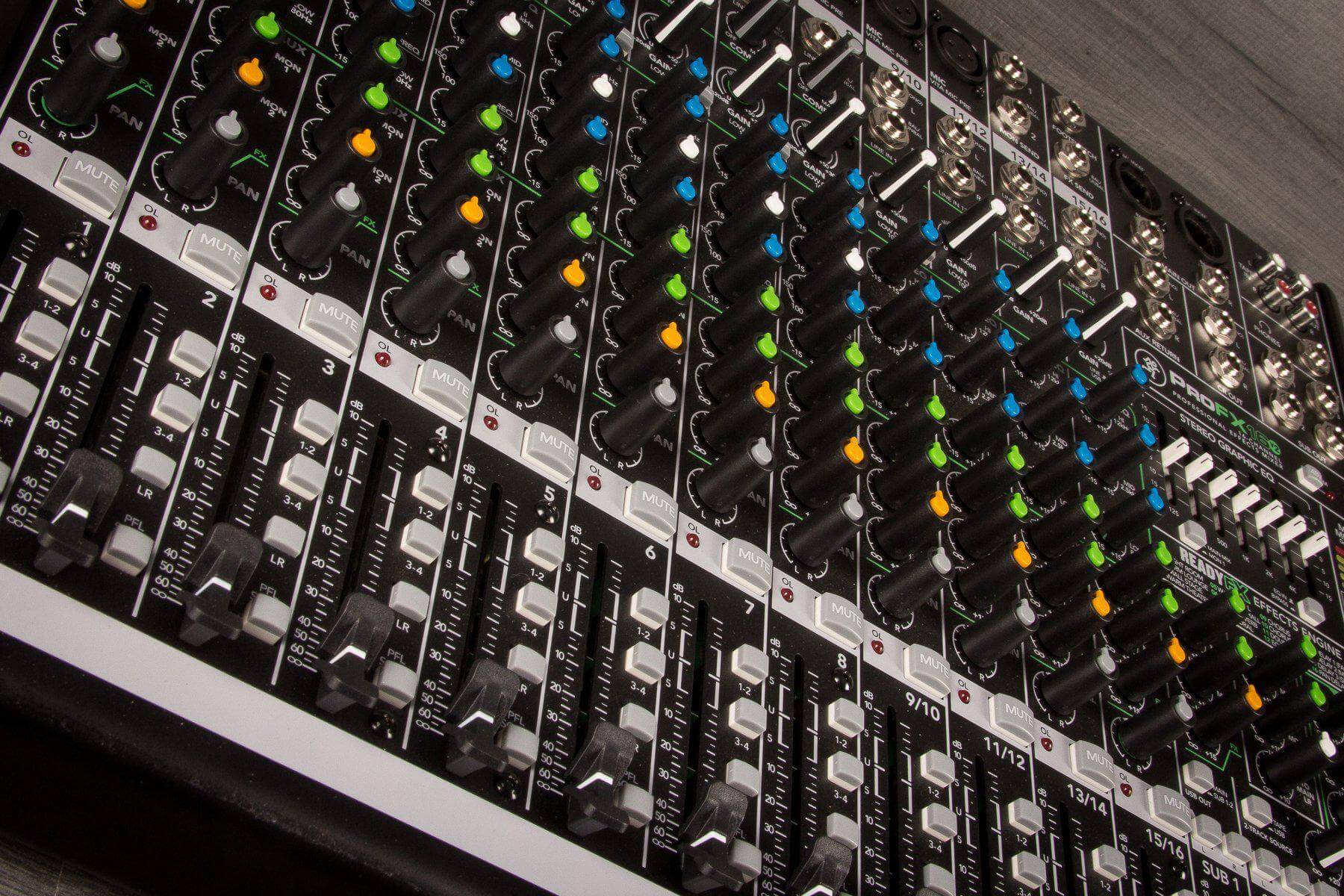

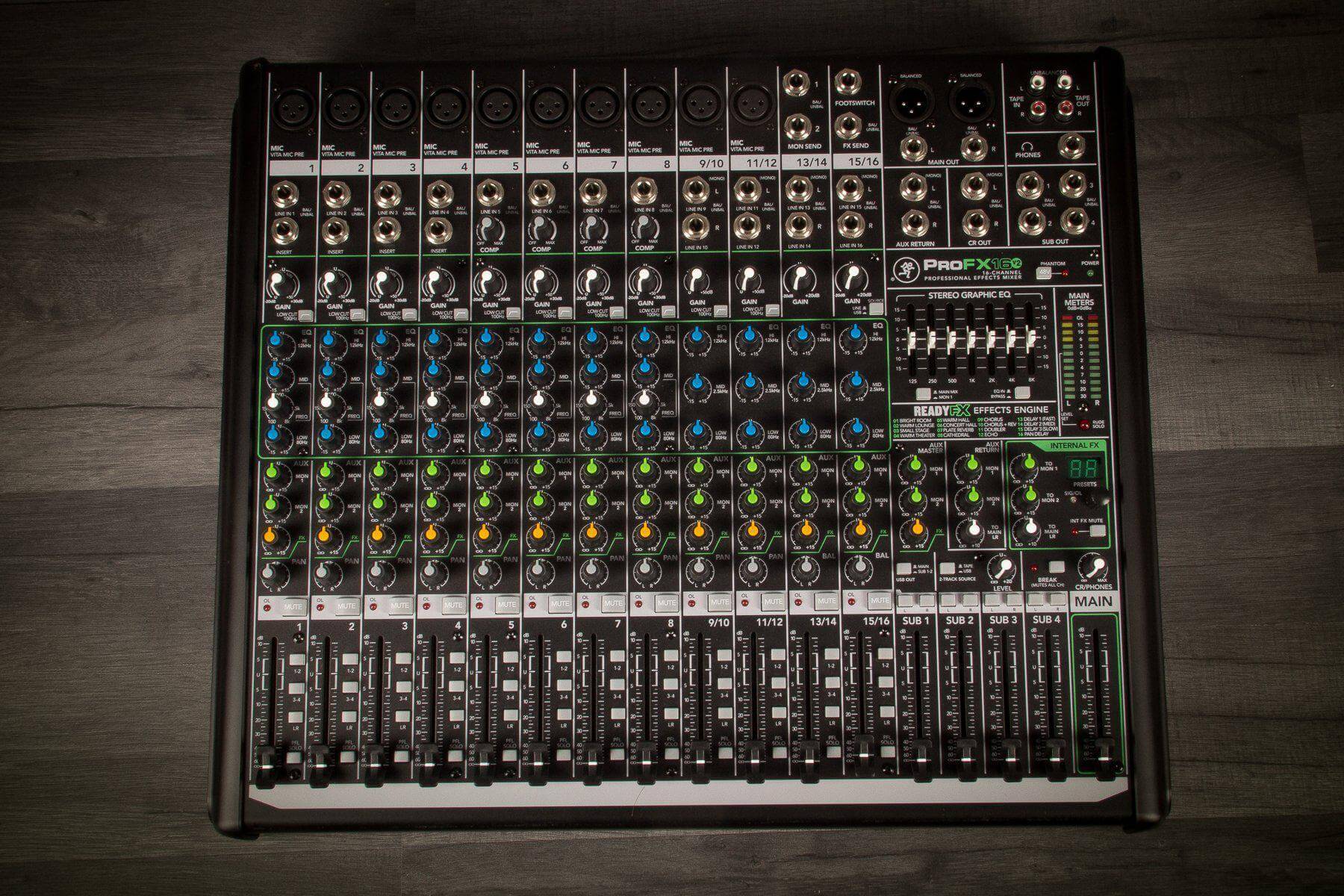

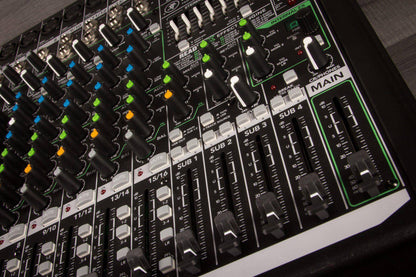

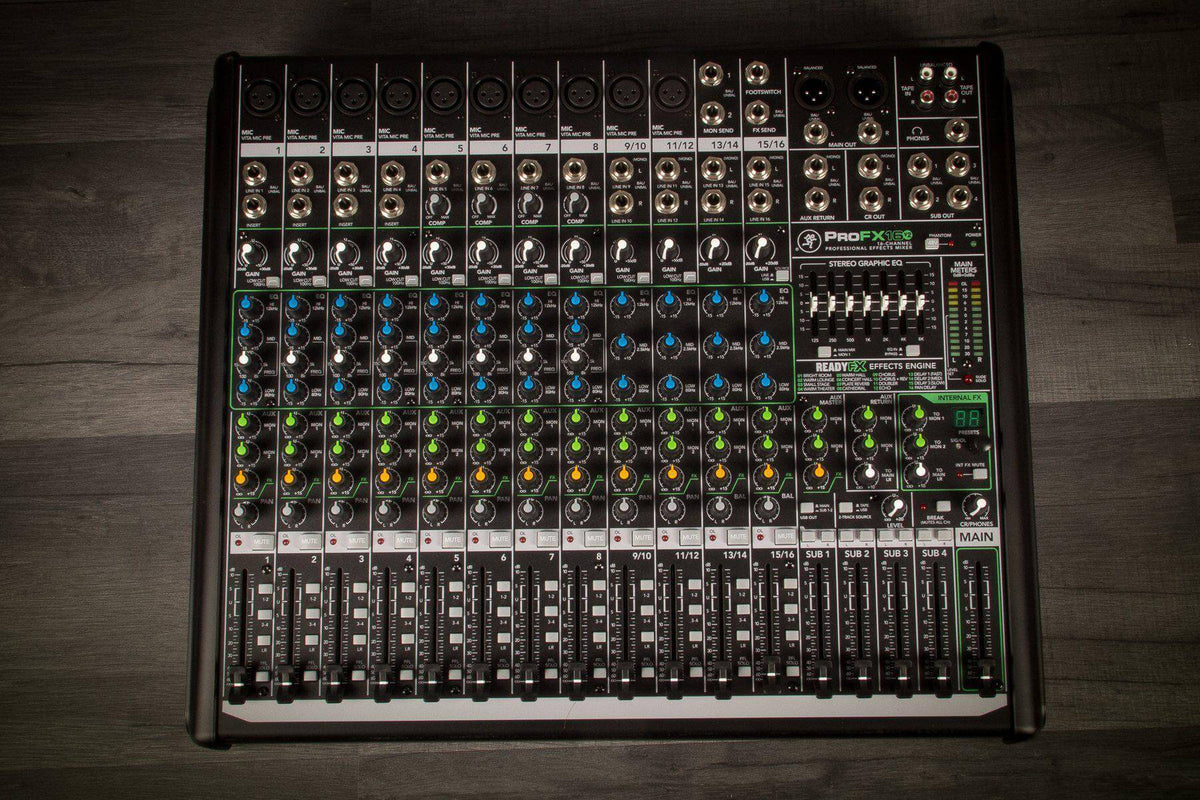

USED - Mackie ProFX16v2 Mixer

USED but in good condition and full working order. Comes with power cable and instructions but no box.

The Mackie ProFX16v2 is a robust and versatile 16 channel mixer that features a range of innovative effects and connections to provide a comprehensive mixing console. With ten powerful and transparent Vita microphone preamps, 16 built in digital effects, 7-band graphic master eq and 3-band eq per channel and USB connectivity the ProFX16v2 delivers premium Mackie perfect for studio and live applications.

Vita Preamps

Designed specifically for live sound, Vita preamps are virtually noiseless, featuring a discrete Class-A front end design, dual feedback stabilization and bias current optimization for unmatched low-noise performance.

ReadyFX Effects Engine

The all-new ReadyFX effects engine employs floating-point DSP, designed specifically for intensive processing of high-quality audio. This results in effects that are rich and always ready to elevate performance and inspire audiences.

Advanced Live Mixing Toolkit

Each ProFXv2 model is a well-stocked audio toolkit. From critical tools like multi-band graphic equalization to smart features like channel inserts and footswitchable FX mute, ProFXv2 always has the tools you need.

USB Recording/Playback

The ProFX16v2 features a built in USB interface to allow simple recording of your live mix direct from your mixer. Additionally the USB connection can be used to playback music from laptops and other devices during the show. Included with the FX16v2 is the easy to use Tracktion recording software.

3-Band Equalization

The ProFX16v2 has 3-band equalization at carefully selected points which can be used to boosts or cut all frequencies past the specified frequency. The hi EQ provides up to 15 dB of boost or cut above 12kHz, and it is also flat (no boost or cut) at the detent. Use it to add sizzle to cymbals, an overall sense of transparency, or an edge to keyboards, vocals and guitar. Increase the cut to reduce sibilance from a microphone or to mask tape hiss. The mid EQ is centred at 2.5 kHz and can be used to manipulate the dynamics of connected instrument. Additionally the low EQ provides up to 15 dB of boost or cut below 80 Hz. This frequency represents the punch in bass drums, bass guitar, fat synth patches and some baritone singers.

Features

• 10 Extremely low-noise Mackie Vita mic preamps designed to add life to any input
• All-new ReadyFX effects engine with 16 great-sounding effects like reverbs, delays and choruses
• Single-knob channel compression for smooth, even dynamic control (ch. 5-8)
• 7-Band graphic EQ for tuning mains or monitors
• Built-in USB interface to record the show or provide music playback
• 4 Flexible subgroups for professional mix management
• 2 Aux outputs for monitor mixes, fill speakers and more
• 3-Band EQ with sweepable mids on mono channels
• 16 High-headroom line level inputs
• Individual channel mutes and overload indication
• 100Hz low-cut filters per channel (18dB/octave)
• Channel inserts for connecting outboard processing (ch. 1-4)
• 60mm faders for input channels, subgroups and main masters
• 48V phantom power for connecting condenser mics
• FX mute with remote control via footswitch
• Break switch mutes all channels for music playback between sets
• Control room / headphone outs with level control
• Balanced XLR and balanced/unbalance 1/4 inch main outputs
• Built in USB recording interface with simple setup via Mac or PC
• Choose to record subgroups 1/2 or main L/R mix
• Separate USB input level control to mains
• USB routable to full-featured channel strip
• Great for live recording and perfect for home studios
• Stream playback music for live or studio applications
• Includes user-friendly Tracktion recording software
• Legendary Mackie "Built-Like-A-Tank" design
• Solid steel chassis protects your investment
• Tough ABS side protection
• Robust internal multi-voltage power supply

Specifications

General

• Inputs: 10 x XLR, 16 x 1/4" Line, 4 x 1/4" Insert, 1 x Stereo RCA, 2 x 1/4" Aux Return
• Outputs: 2 x 1/4" Main Out, 2 x XLR Main Out, 1 x 1/4" FX Send, 2 x 1/4" Mon Send, 1 x 1/4" Headphones, 1 x Stereo RCA, 4 x 1/4" Sub Out, 2 x 1/4" CR Out
• Frequency Response: 20 Hz - 40 kHz
• Distortion (THD+N): Mic to Insert Send (EIN): -128 dBu
• Residual Noise Output: -85 dBu
• Attenuation/Crosstalk: - 90dB
• Mute Switch / Break Switch (Crosstalk): -100dB
• CMRR: 70 dB
• Inputs Level (Max): +22 dBu
• Output Level (Max): +28 dBu
• Digital Effects (Input): Mono
• Digital Effects (Output): Stereo
• Digital Effects Presets: 16
• Phantom Power: +48V
• Operating Temp: 0° - 40°C
• Power Consumption: 40 Watts
• Height: 3.8" / 97mm
• Width: 18.7" / 475mm
• Depth: 16" / 407mm
• Weight: 5.9 Kg

USB

• Format: USB 1.1
• I/O: Stereo Input/Output
• A/D/A: 16-Bit, 44.1 kHz / 48 kHz

Channel Equalization

• Low: +/- 15dB @ 80 Hz
• Mid: +/- 15dB @ 2.5 kHz
• High: +/- 15dB @ 12 kHz
• Low Cut Filter: 18dB/Octave @ 100 Hz

Graphic Equalization

• Frequency Centres: 125, 250, 500, 1k, 2k, 4k, 8k
• Gain: +/-15
• Assignable To: Main, Monitor, Bypassable

Impedance

• Mic In: 3.3K Ohms
• Channel Insert Return: 10K Ohms
• Inputs: >20K Ohms
• Tape Output: 1K Ohms
• Phones Output: 25 Ohms
• Other Outputs (Unbalanced): 120 Ohms
• Other Outputs (Balanced): 240 Ohms
