Through experimentation while on the stage and in the studio, revelations both sonically and as they pertain to design have allowed me and the gifted team at MM to update and improve the features of the JP over the years.

The 13 marks the first time a preamp circuit has been introduced in this guitar along with a solo boost conveniently accessed from the volume knob.

The enhanced tonal range and openness is noticeable and welcomed from the moment you plug it in. - John Petrucci

Specifications

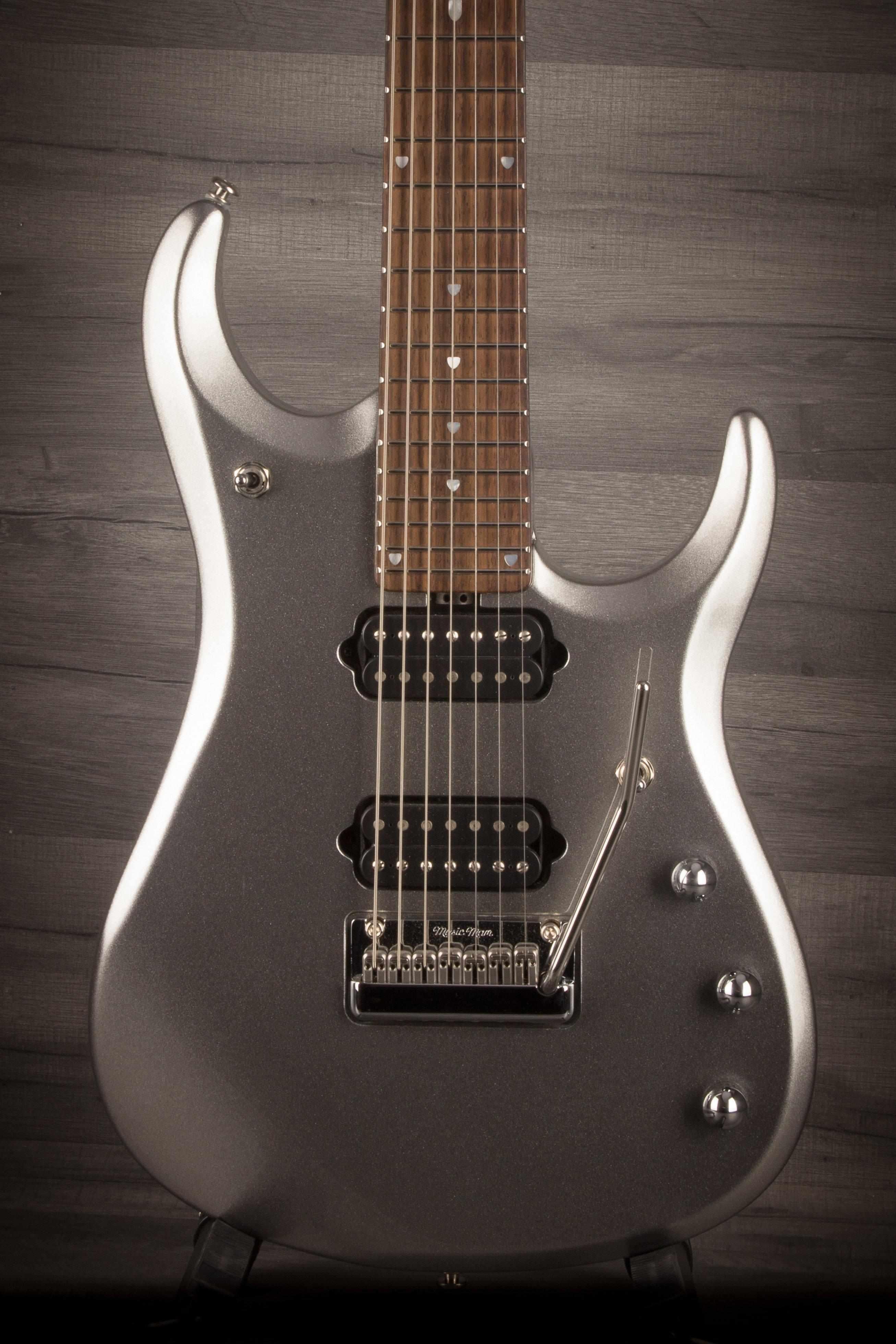

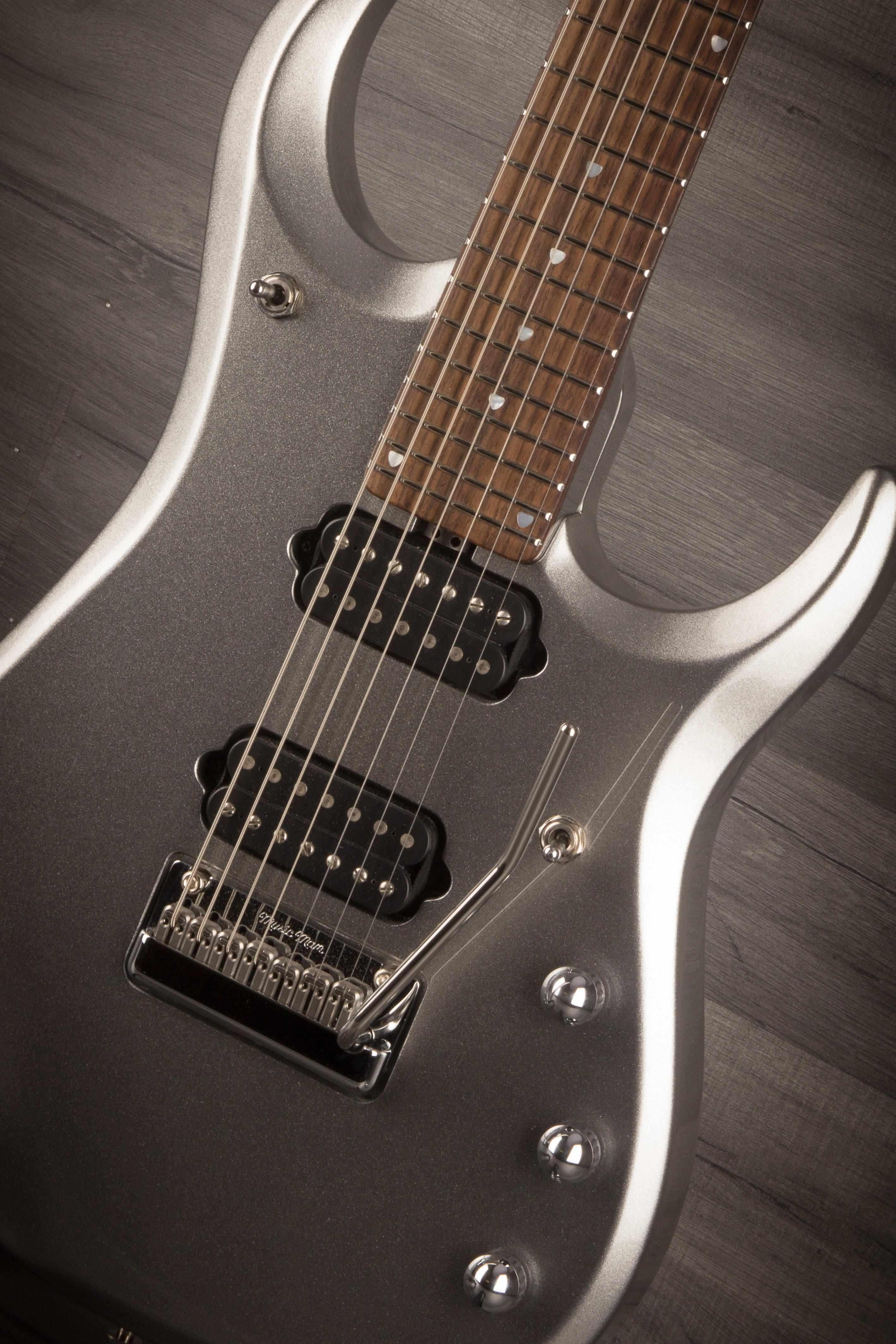

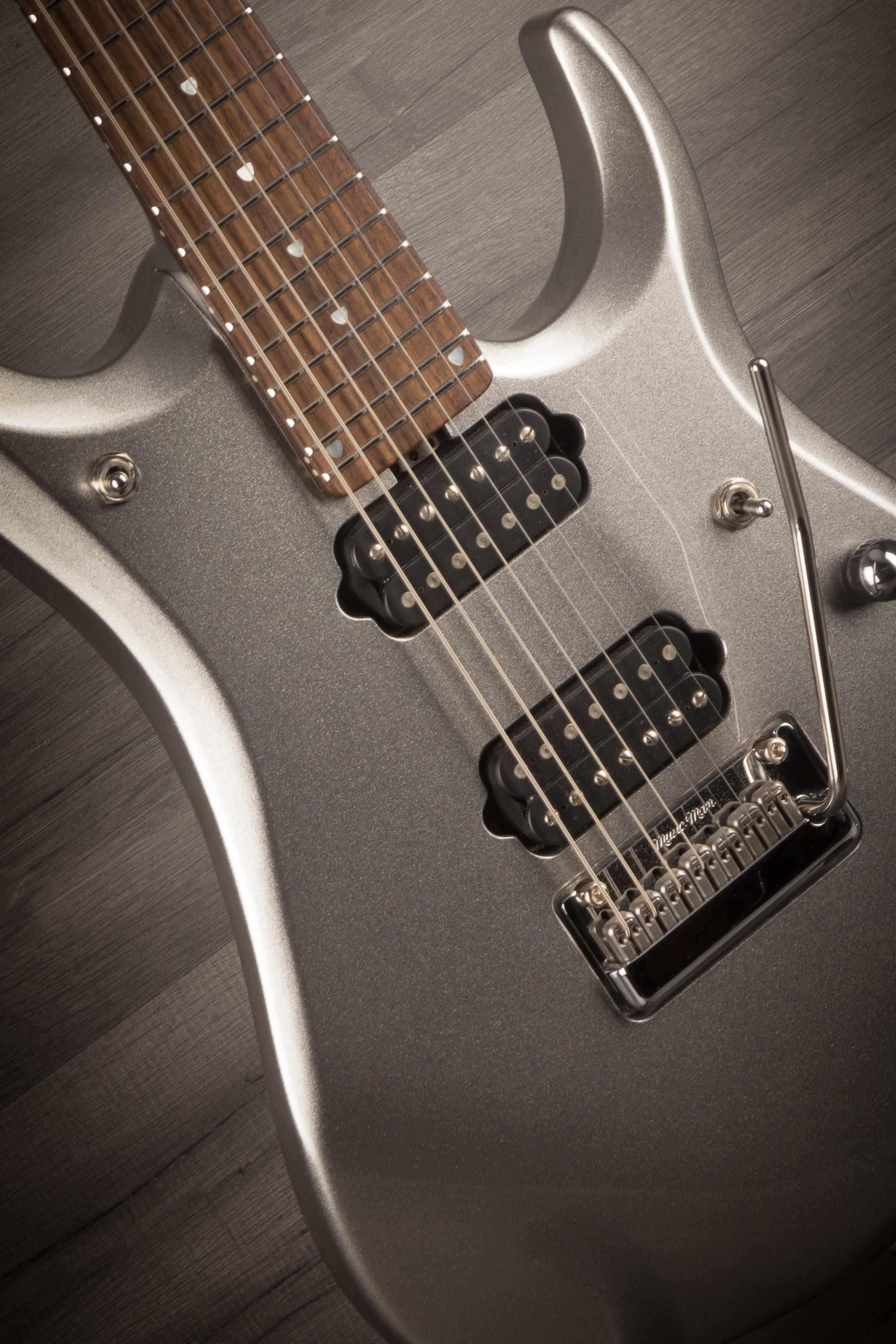

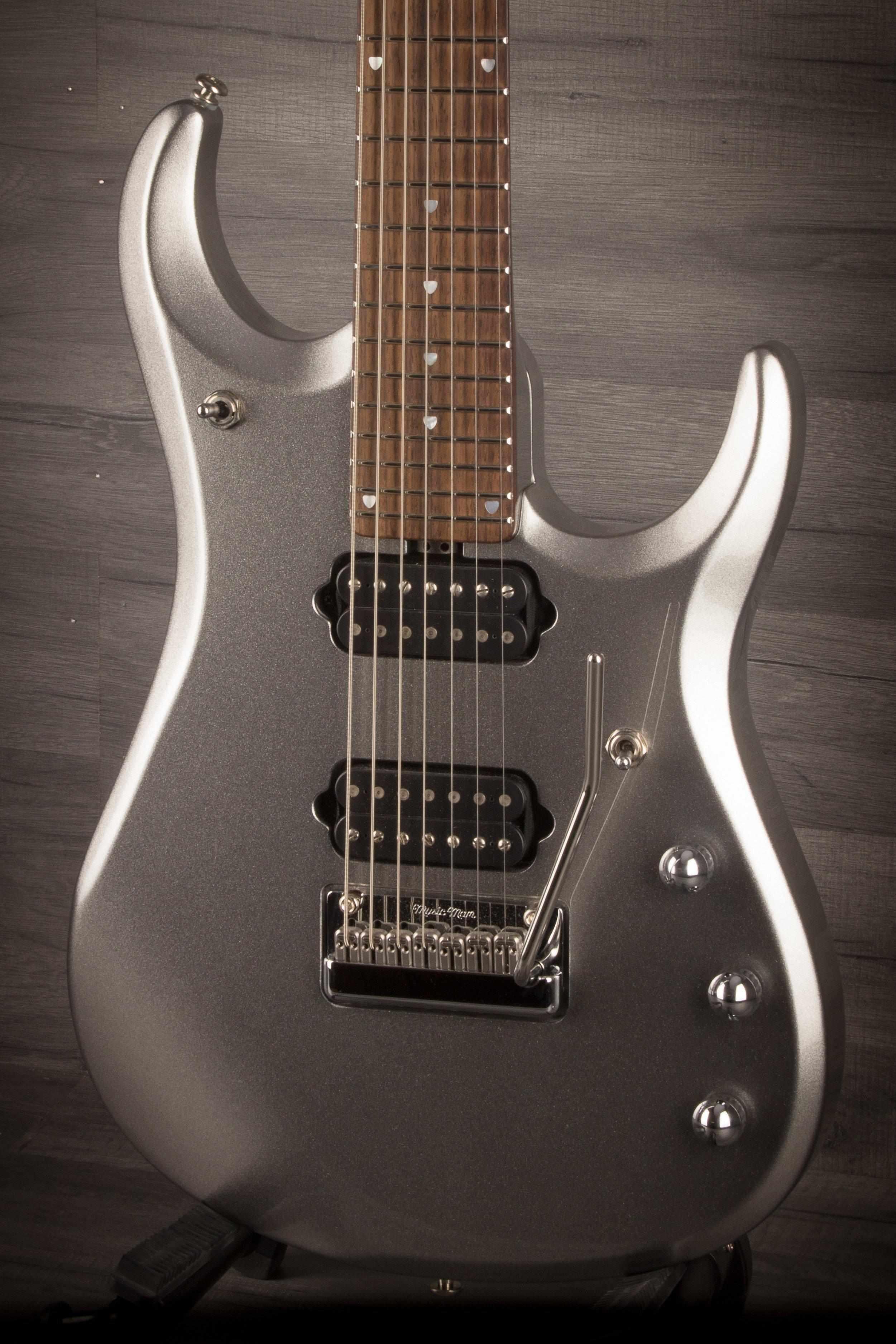

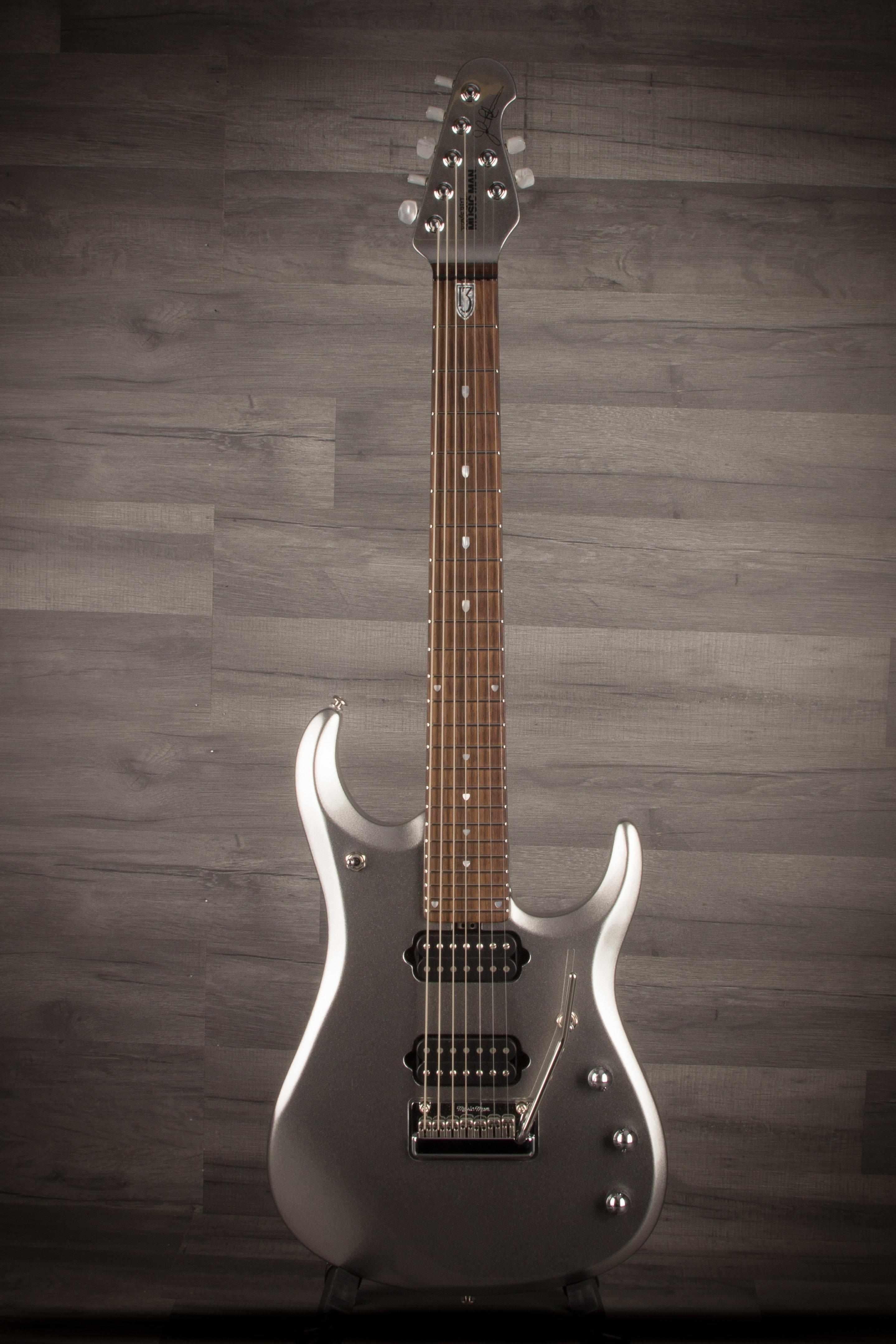

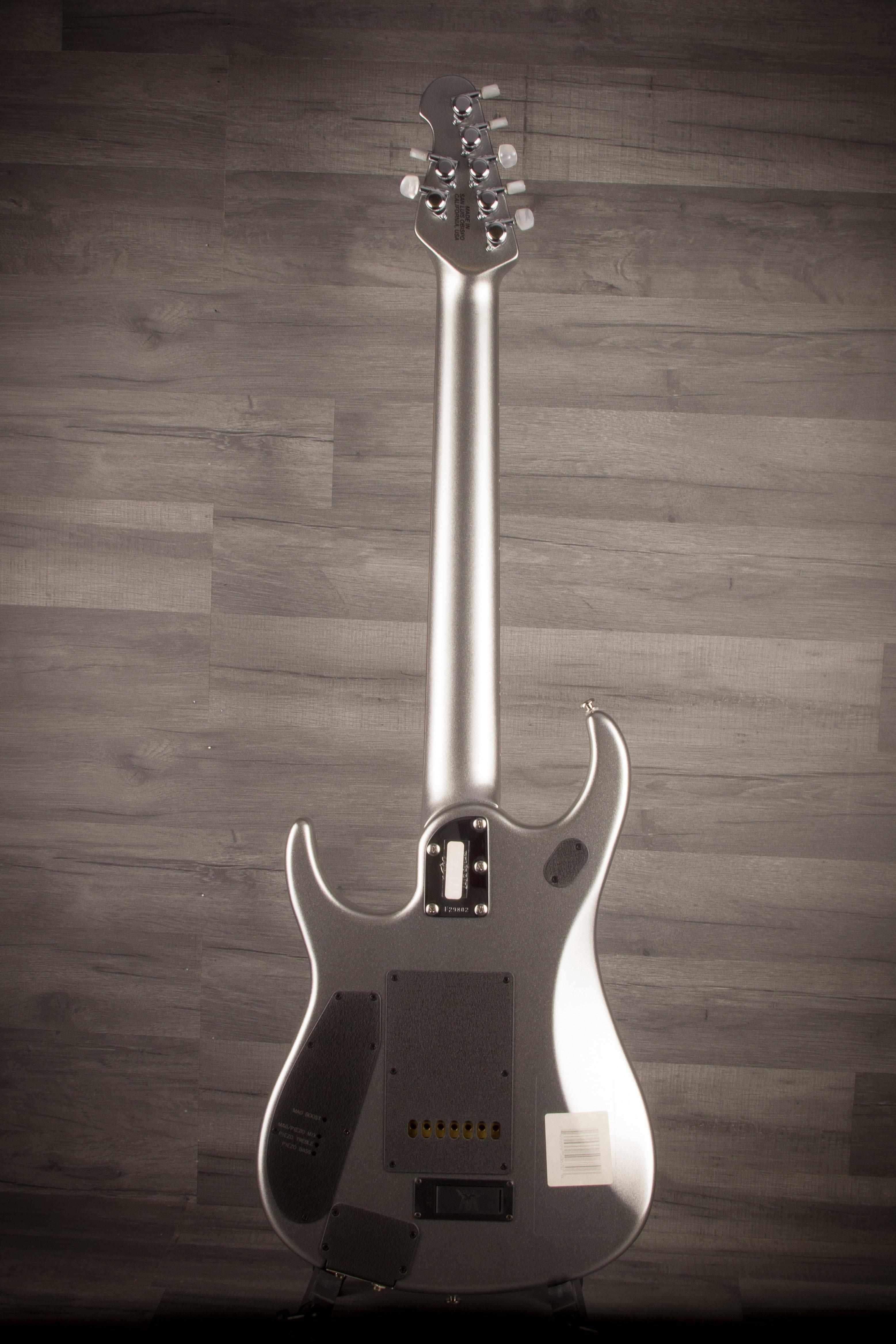

• Model JP13 7
• Size 12-1/2" wide, 1-3/4" thick, 38" long (31.8 cm wide, 4.5 cm thick, 96.5 cm long)
• Weight 7 lbs, 8 oz (3.40 kg) - varies slightly
• Body Wood Basswood with maple top and mahogany Tone Block
• Body Finish High gloss polyester
• Body Colors Platinum Silver
• Bridge Custom John Petrucci Music Man® Piezo floating tremolo, made of chrome plated, hardened steel with solid steel saddles.
• Scale Length 25-1/2" (64.8 cm)
• Neck Radius 17" (43.2 cm)

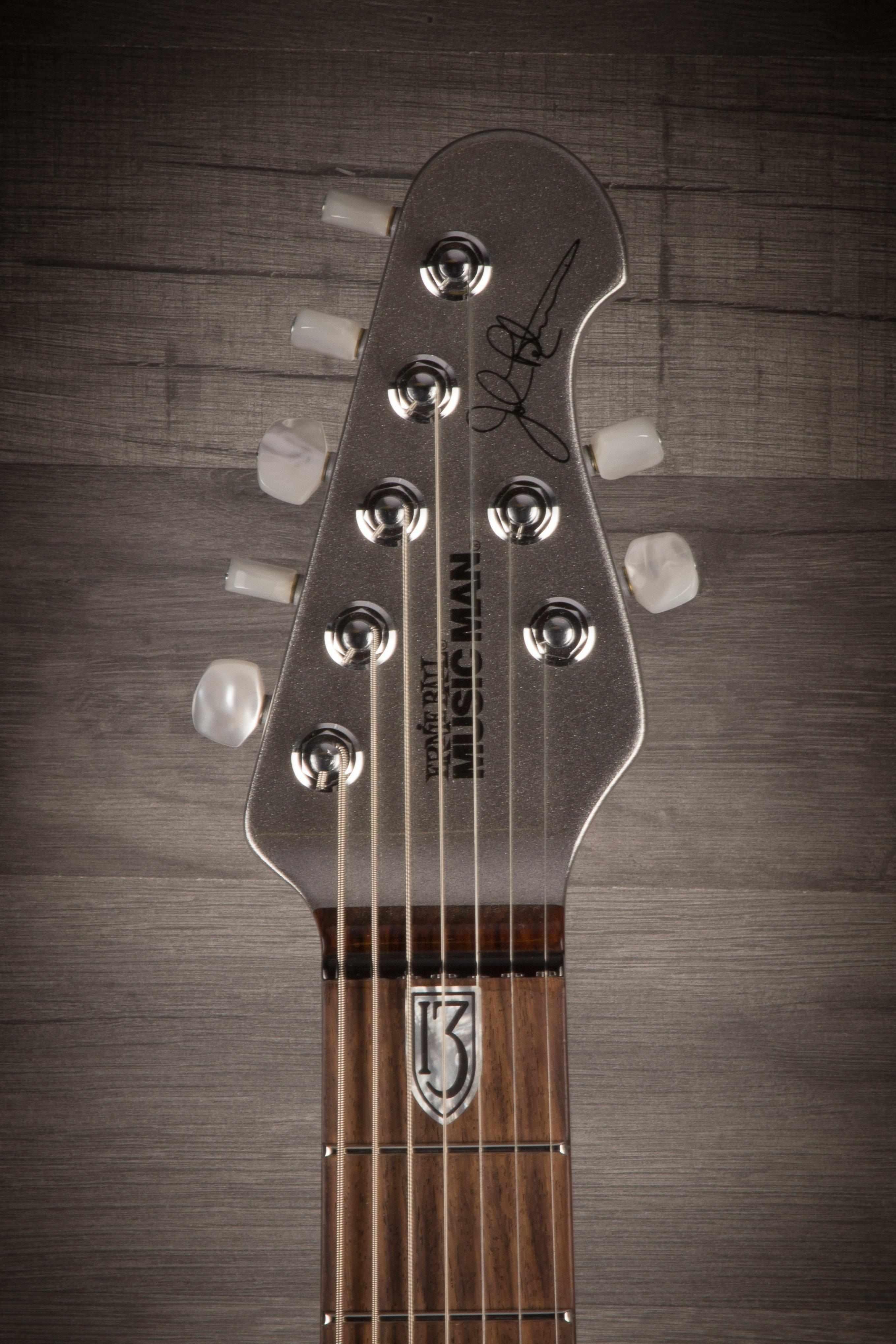

• Headstock Size Only 6-7/8" (17.5 cm) long
• Frets 24 - Medium Jumbo profile, Stainless Steel
• Neck Width 1-7/8" (47.6 mm) at nut, 2-7/16" (61.9 mm) at last fret
• Neck Wood Select mahogany
• Fingerboard Rosewood
• Fret Markers Custom JP13 Inlays
• Neck Finish High gloss polyester
• Neck Colors Color matches body

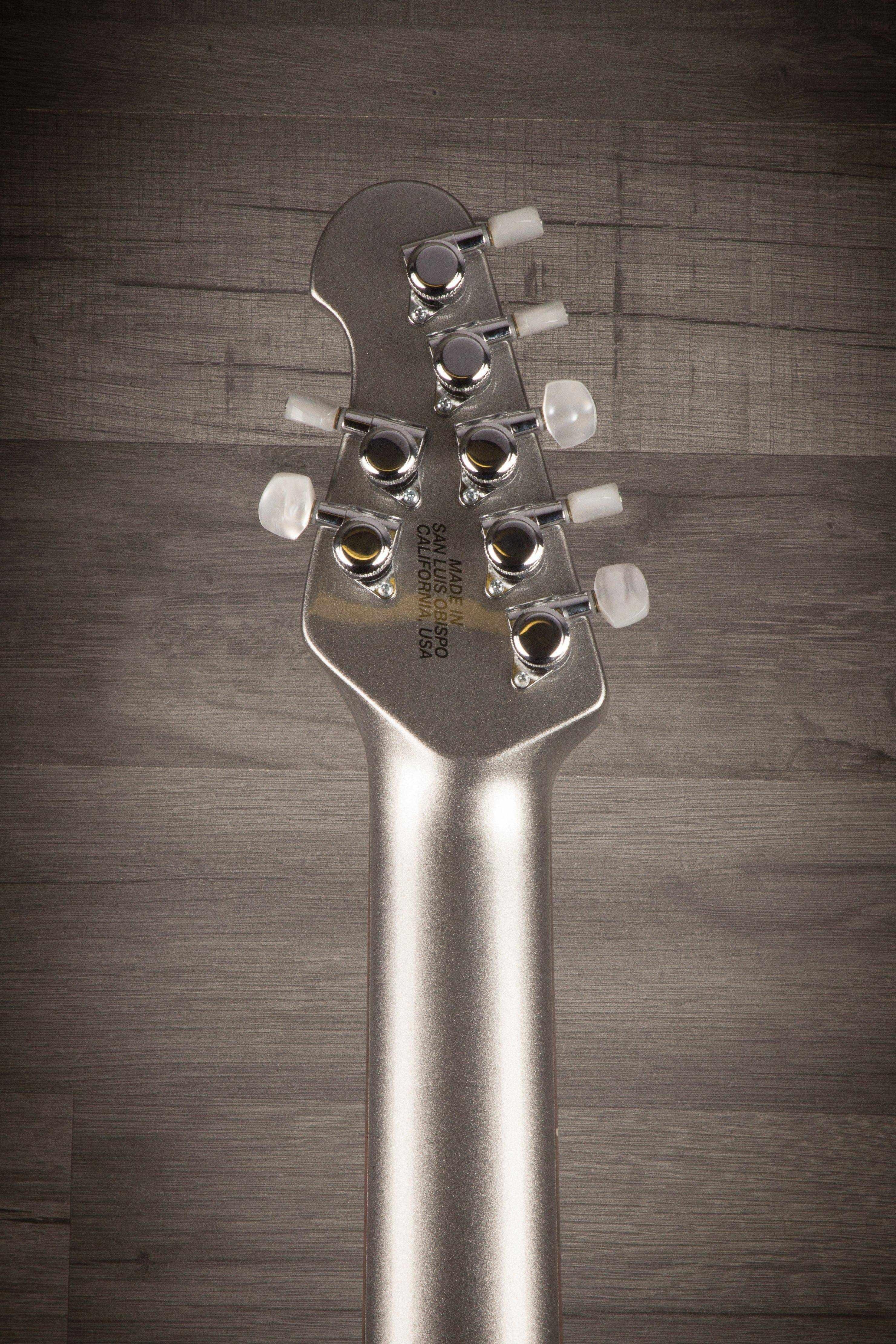

• Tuning Machines Schaller M6-IND locking with pearl buttons
• Truss Rod Adjustable - no component or string removal
• Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
• Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
• Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom 2 pickup configurations - .022µF tone capacitor
• Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector
• Pickups HH - DiMarzio Illuminators; Piezo bridge pickup
