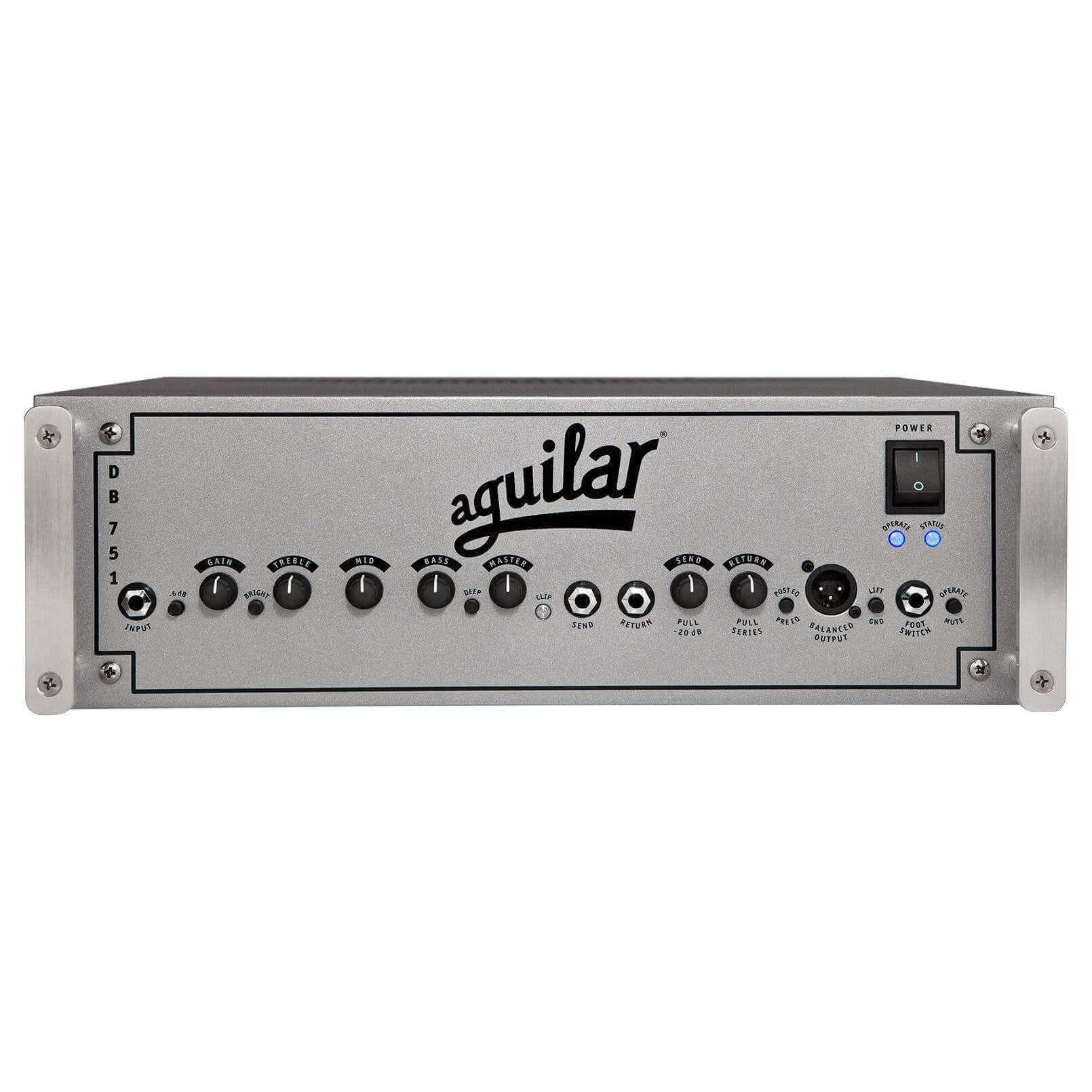

Aguilar Amplifier Db751 Bass Head

Power Output: 975 watts into 2 ohms • 750 watts into 4 ohms • 400 watts into 8 ohms • Preamp Section: Three 12AX7’s • Power Section: 12 complimentary lateral MOSFETs • Transformer: Custom Aguilar toroidal power transformer • EQ Section: passive tone stack with active midrange element • Bass: +12 / -12 @ 40Hz • Midrange: +12 / -12 @ 750Hz • Treble: +12 / -7 @ 4kHz • Deep Switch: Adds 5 dB of broadband boost at 30 Hz • Bright Switch: Adds 5 dB of broadband boost at 5-7 kHz • Effects Loop: Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation • Inputs: One 1/4” input jack with an active/passive switch • Outputs: Two Neutrik Speakon speaker outputs • Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out • Cooling: High quality whisper fans with thermal speed control • Dimensions: 17”W x 14”D x 5.25”H • Rack Size: Three Spaces • Includes detachable rack ears • Weight: 42 lbs • Includes: Rack Ears
