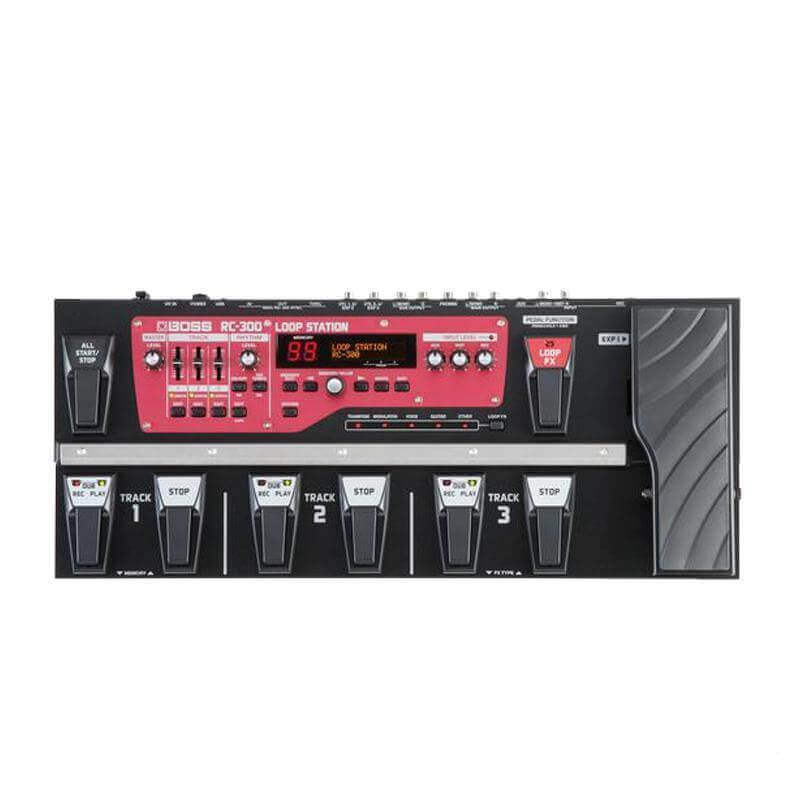

Boss RC-300 Loop Station Effects Pedal
The Boss RC-300 Loop Station Effects Pedal features three synchronized stereo track with dedicated volume knobs and transport-control footswitchyes for each track. It's also equipped with pro effects, a master Expression pedal, and a deluxe, ultra-wide control panel for the ultimate in live-performance manipulation. The XLR inputs with phantom power for condenser mics allow you to loop vocals too!
Features:
- Three stereo tracks with dedicated footswitches and controls for each
- Dedicated fader per track
- Expression pedal for effects control in real time
- Up to three hours of internal recording and 99 onboard memories
- 16 onboard effects optimized for looping
- XLR Microphone input with phantom power
- USB storage; import/export WAV files
- Visit BOSS tone central for free loop content and software to manage your LoopStation
Effect Types:
- Transpose
- Flanger
- Phaser
- Pan
- Tremolo
- Slicer
- Bend
- Chorus
- Robot
- Female
- Male
- Gt->Bass
- Filter
- Delay
- Lo-Fi
- Distortion
Specifications
- Nominal Input Level:
- INPUT MIC: -50 dBu (variable)
- INPUT INST: -10 dBu (variable)
- INPUT AUX: -20 dBu (variable)
- Input Impedance
- INPUT MIC: 4 k ohms
- INPUT INST: 1 M ohm
- INPUT AUX: 47 k ohms
-
Nominal Output Level:
- MAIN OUTPUT: -10 dBu
- SUB OUTPUT: -10 dBu
-
Output Impedance: 2 k ohms
-
Recommended Load Impedance: 10 k ohms or greater
- Recording/Playback:
-
Maximum Recording Time: Approximately 3 hours (stereo)
-
Maximum Phrase Memory: 99
-
Number of tracks: 3
-
Data Format: WAV (44.1 kHz, 16-bit linear, stereo)
-
Rhythm Types: 83
-
USB Interface:
- Hi-Speed USB (USB Mass Storage Class)
- Hi-Speed USB (USB-AUDIO)
- Pedals:
- TRACK 1 REC/DUB/PLAY pedal
- TRACK 2 REC/DUB/PLAY pedal
- TRACK 3 REC/DUB/PLAY pedal
- TRACK 1 STOP pedal
- TRACK 2 STOP pedal
- TRACK 3 STOP pedal
- ALL START/STOP pedal
- LOOP FX pedal
- EXP 1 pedal
- Sliders:
- TRACK 1 slider
- TRACK 2 slider
- TRACK 3 slider
- Knobs:
- MASTER LEVEL knob
- RHYTHM LEVEL knob
- AUX knob
- INST knob
- MIC knob
-
Displays:
- 7 segments, 2 characters (LED)
- 16 characters, 2 lines (backlit LCD)
- Connectors:
-
INPUT MIC jack: XLR type (balanced/phantom power: DC 48 V, 10 mA)
-
INPUT INST jacks (L/MONO, R): 1/4" phone type
-
INPUT AUX jack: Stereo miniature phone type
-
MAIN OUTPUT jacks (L/MONO, R): 1/4" phone type
-
SUB OUTPUT jacks (L/MONO, R): 1/4" phone type
-
PHONES jack: Stereo 1/4" phone type
- CTL 1,2 / EXP 2 jack: 1/4" TRS phone type
- CTL 3,4 / EXP 3 jack: 1/4" TRS phone type
- USB connector
- MIDI connectors (IN/OUT/THRU) (*)
- DC IN jack (DC 9 V)
(*) MIDI synchronization is possible with other RC-300 devices or when RC-300 is set to master.
-
Power Supply DC 9 V (AC adaptor)
-
Current Draw: Maximum 320 mA (DC 9 V)
Included Accessories:
- Owner's Manual
- AC adaptor
- USB cap
