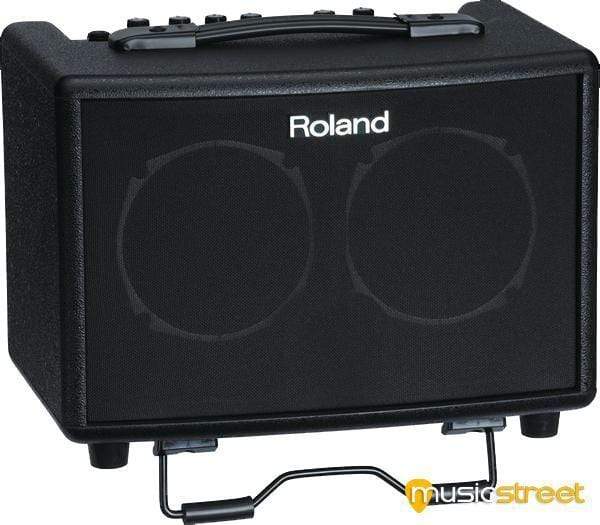

Roland Ac-33

The World's First AA Battery-Powered Acoustic Guitar Amp - Rich, deep, stereo sound to go - the AC-33 is the world's first AA battery-powered amp made specifically for acoustic guitar. Portable yet powerful, the AC-33 provides true stereo sound, Guitar and Mic/Line channels, custom-tailored effects, anti-feedback, and a Phrase Looper.

This amp was made to go places no amp has gone before. Thanks to its battery-power capability, the AC-33 lets you take your act anywhere - into the backwoods, onto the streets, or wherever your imagination leads you.



Natural, Stereo Sound

Equipped with Roland's latest DSP technology, the AC-33, delivers pure, rich acoustic sound with projection far beyond its size. Its true stereo design (15 watts x 2) enables brilliant stereo/multi-band chorus with "Wide" mode, plus shimmering reverb and 3D-type ambience effects tailored specifically for acoustic guitar.

Strum and Sing

The AC-33 provides two discrete channels: Guitar and Mic/Line. Plug in an acoustic guitar and a microphone (or line-level instrument) and mix them separately. Both channels have dedicated controls for volume, multi-band EQ, and chorus. The Mic/line channel offers both XLR and 1/4" inputs. You can also connect an MP3/CD player to the stereo AUX input for play-along practice or performance. Master volume, reverb, ambience, and anti-feedback are provided as well.

Phrase Looper

This amp was made to go places no amp has gone before. Thanks to its battery-power capability, the AC-33 lets you take your act anywhere - into the backwoods, onto the streets, or wherever your imagination leads you.

The AC-33's onboard Phrase Looper lets you record, loop, and jam over your own guitar riffs or incoming audio from the AUX input. Record and loop up to 40 seconds at a time, and amaze your listeners with sound-on-sound performances that you create on the spot.



Features/Specifications:

• 30 watts (15 W+15 W) of natural, stereo acoustic sound through twin speakers
• Runs on AC power or eight AA batteries (or AA rechargeable Ni-MH batteries)
• Dual-channel configuration: Guitar and Mic/Line channel
• Reverb, chorus, and ambience effects (Ambience adds spatial, 3D-type depth to the sound)
• Phrase Looper with 40 seconds of record time
• Stereo AUX input (connect MP3/CD players, etc), headphone output
• Anti-feedback function
• Built-in tilt-back stand
• Removable battery cartridge for easy battery replacement



Further Specs:

• Rated Power Output:
• 15 W + 15 W (when using the AC adaptor)
• 10 W + 10 W (when using the Alkaline batteries)

• Nominal Input Level (1 kHz):
• GUITAR Channel: -10 dBu
• MIC/LINE Channel: -50 dBu/-20 dBu
• AUX IN: -10 dBu



Nominal Output Level (1 kHz): LINE OUT: -10 dBu

Speakers: 12 cm (5 inches) x 2



Controls:

• [GUITAR Channel]:
• VOLUME Knob:
• BASS Knob
• MIDDLE Knob
• TREBLE Knob
• CHORUS Switch (OFF, SPACE, WIDE)

• [MIC/LINE Channel]
• VOLUME Knob
• BASS Knob
• TREBLE Knob
• CHORUS Switch (OFF, SPACE, WIDE)

• [REVERB/AMBIENCE]
• REVERB/AMBIENCE Knob



[ANTI-FEEDBACK]

• ON/OFF Switch



• [LOOPER]
• REC/PLAY/OVERDUB Button
• STOP/CLEAR Button

• [AUX IN Controls]
• LEVEL Knob
• MASTER Knob
• POWER Switch



Indicators: REC, PLAY, OVERDUB, POWER





Connectors:



Guitar: Channel Input Jack (1/4-inch phone type)

MIC/LINE: Channel Input Jacks(XLR type, Balanced) - (1/4-inch TRS phone type, Balanced)

AUX IN Jacks: L, R (RCA phono type)-(Stereo miniature phone type)

LINE OUT Jacks: L (MONO), R (1/4-inch phone type)

PHONES Jack: (Stereo 1/4-inch phone type)

DC IN Jack



• FOOT SW Jack:[EFFECTS]:
• (TIP: CHORUS, RING: REVERB/AMBIENCE)
• (1/4-inch TRS phone type)

• FOOT SW Jack:[LOOPER]
• (TIP: REC/PLAY/OVERDUB, RING: STOP/CLEAR)
• (1/4-inch TRS phone type)

Power Supply:

• AC Adaptor (included, DC 13 V)
• Dry battery LR6 (AA) type (alkaline) x 8
• Rechargeable Ni-MH battery (AA, HR6) type x 8



Current Draw: 490 mA



• Expected battery life under continuous use:
• Alkaline battery: Approx. 8 hours
• Rechargeable Ni-MH battery (AA, HR6): Approx. 9 hours
• These figures will vary depending on the actual conditions of use.
