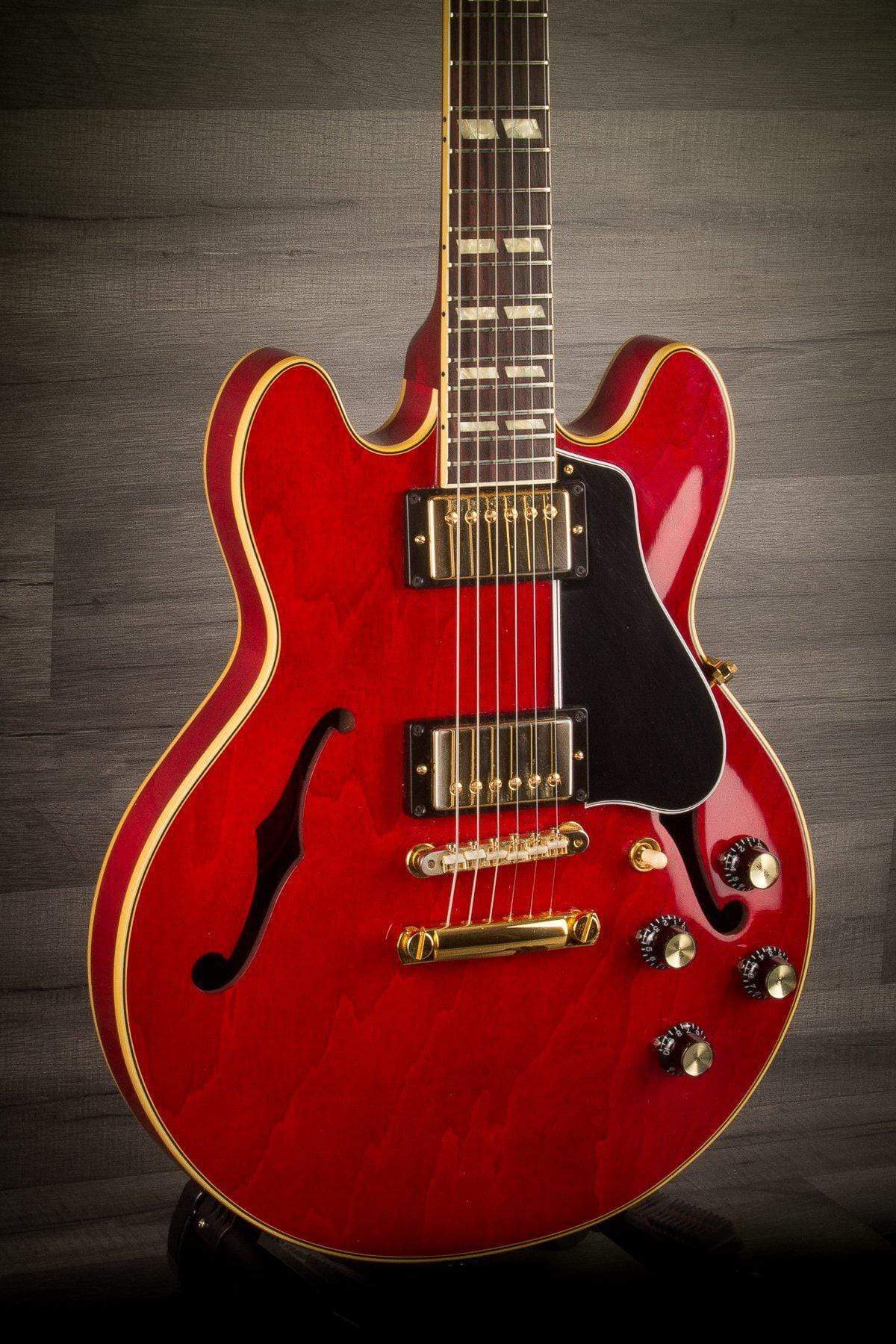

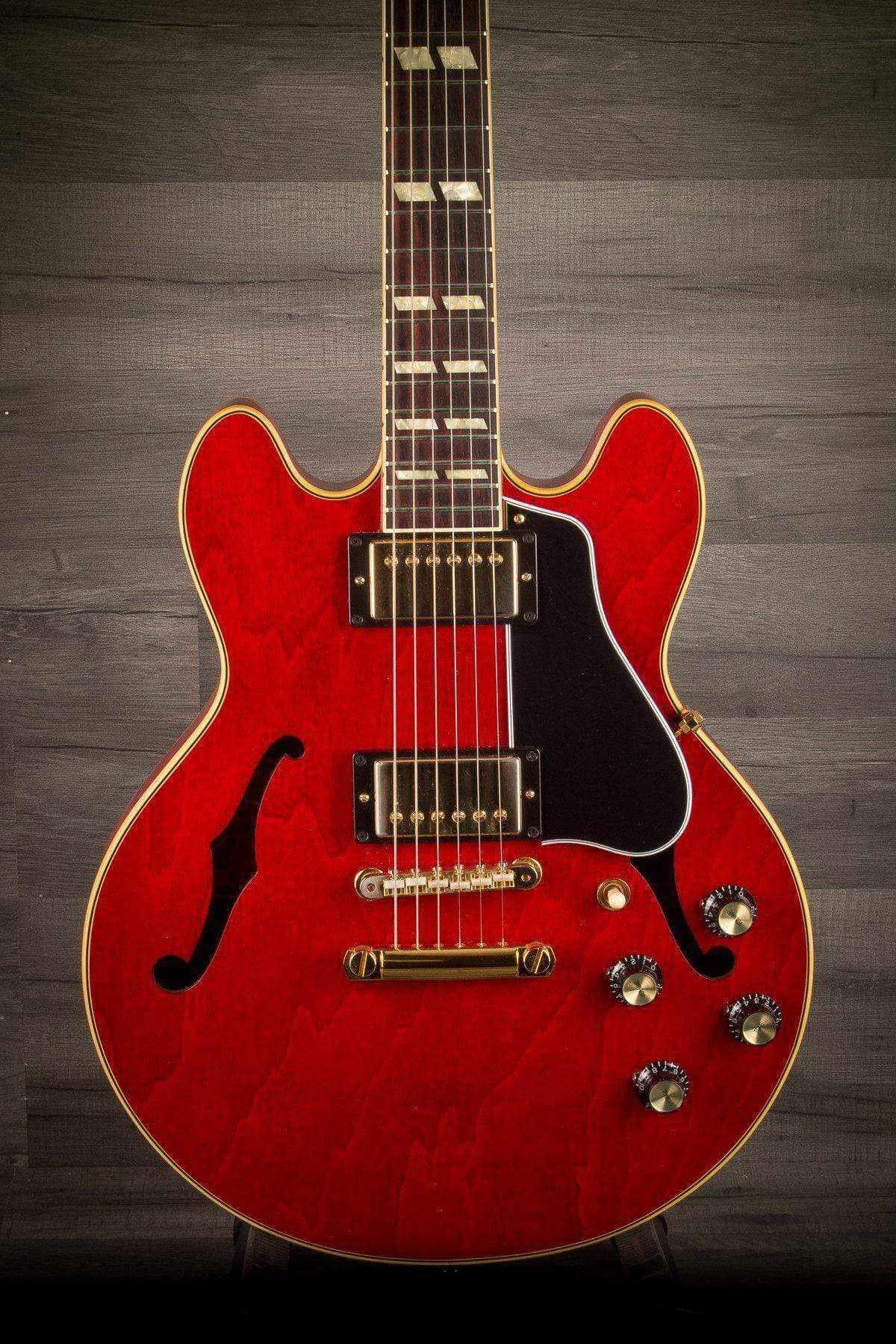

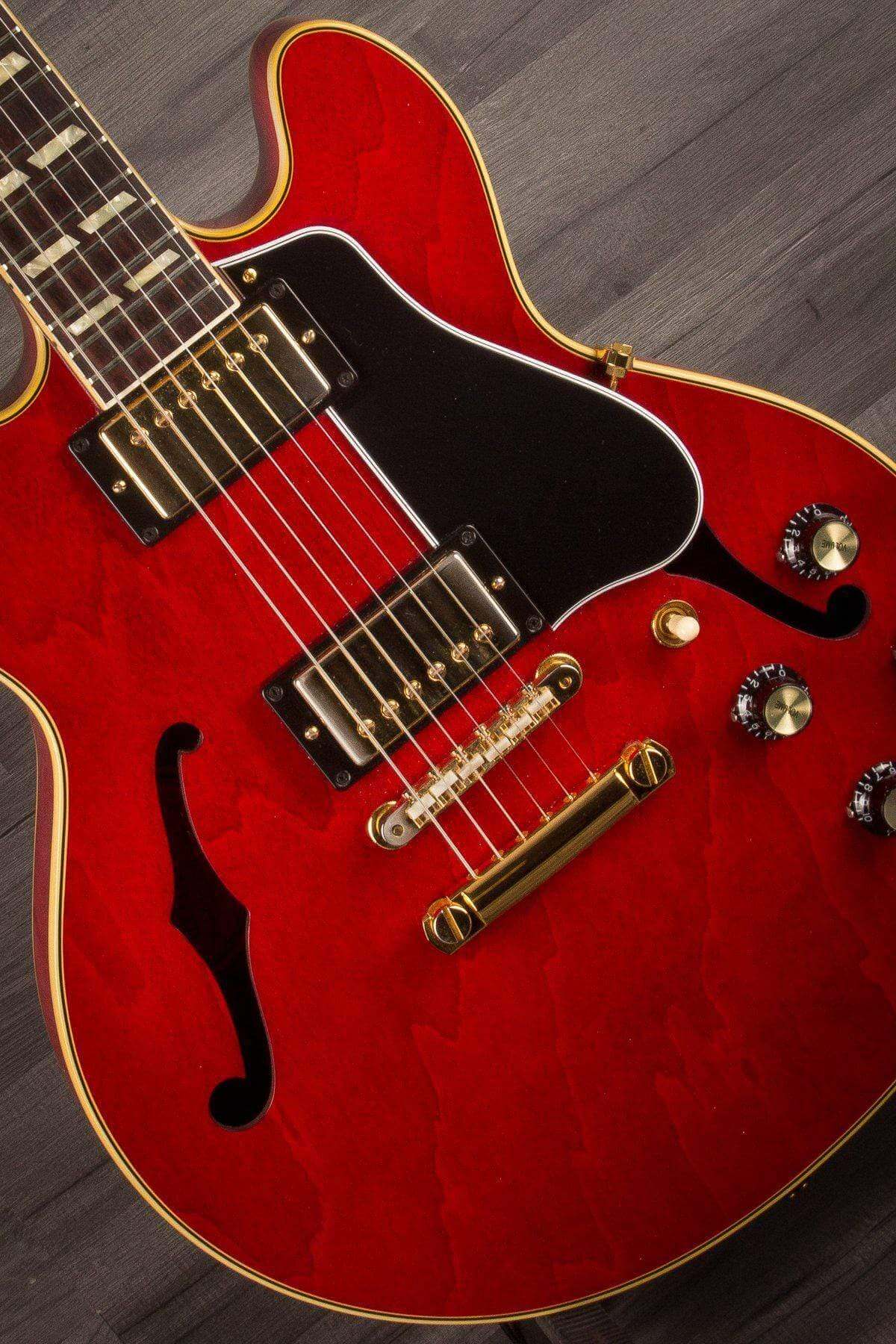

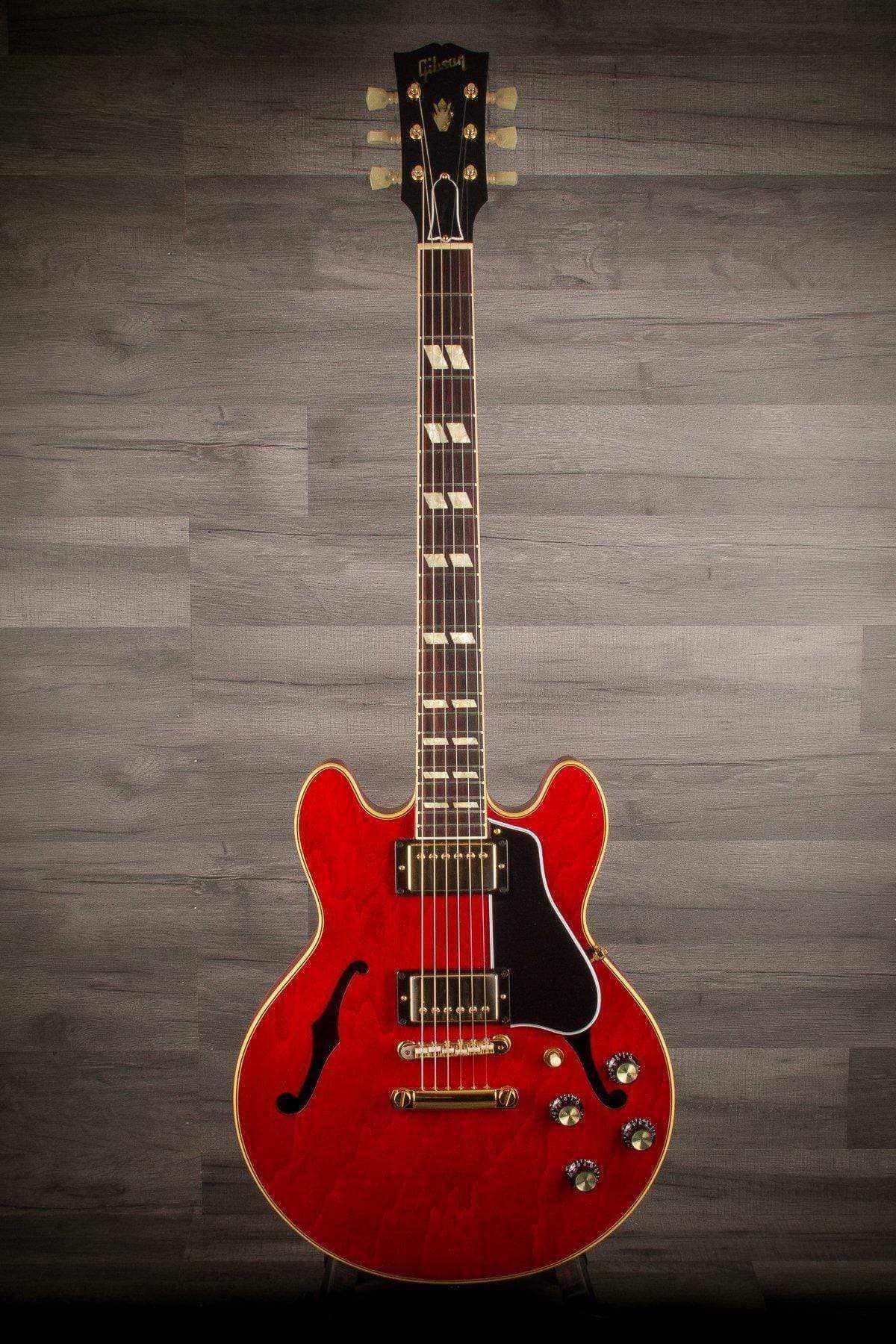

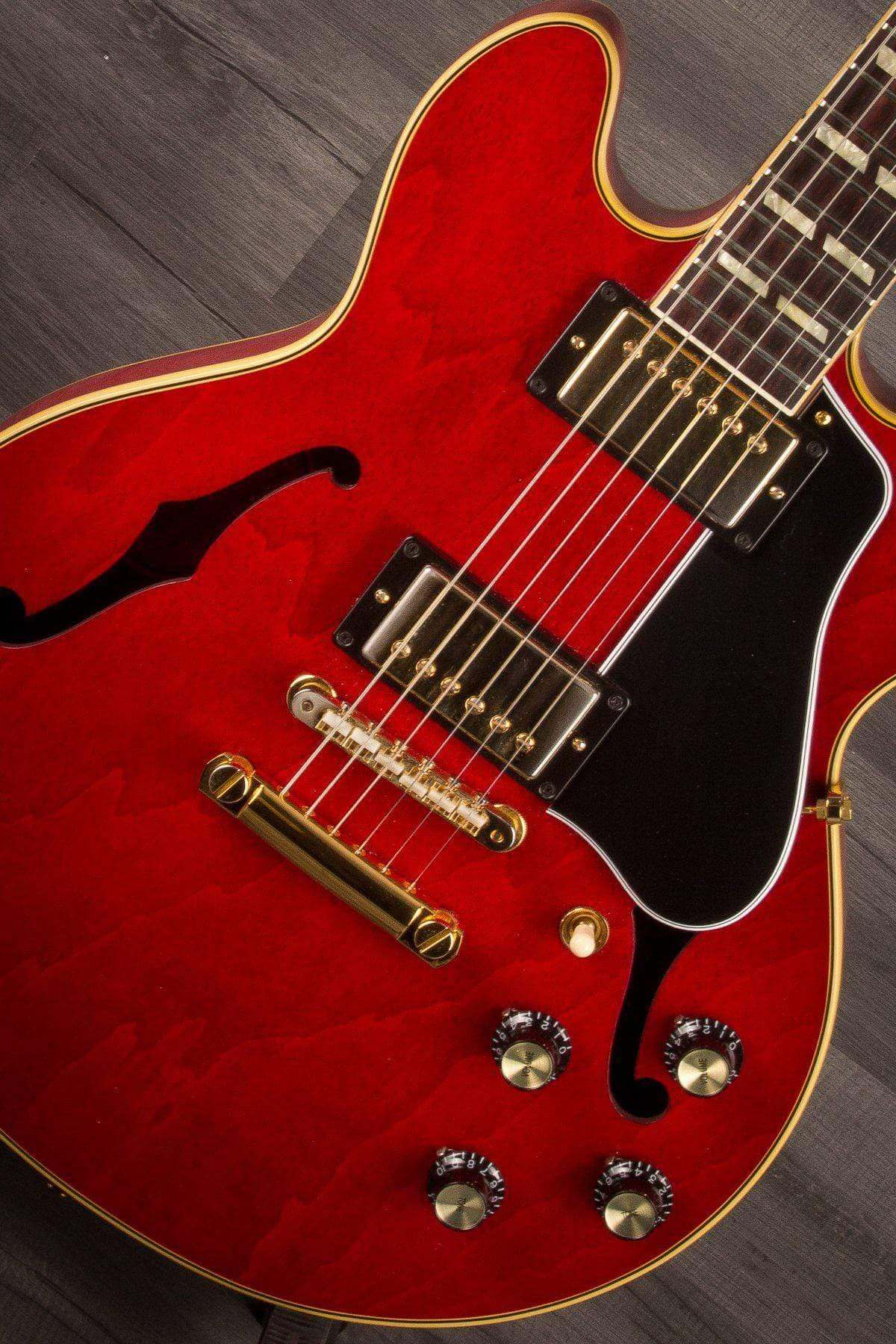

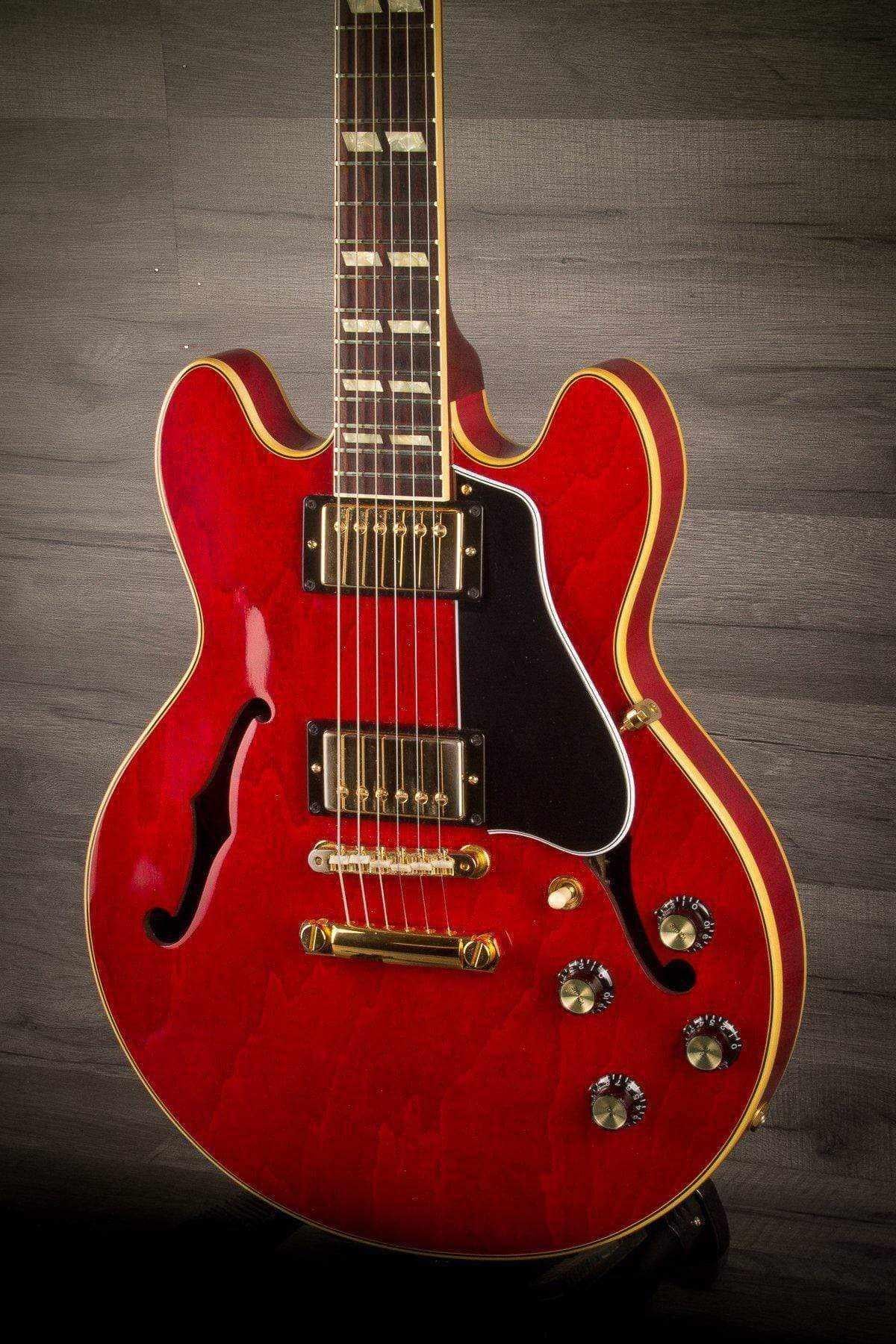

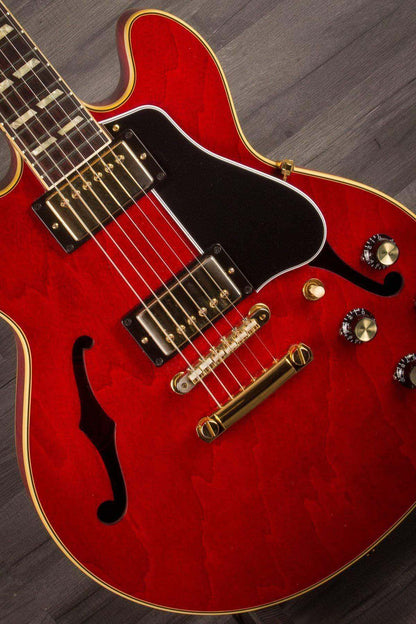

USED - Gibson ES-349 Cherry

2015 Model in very good condition including Gibson hard case and original paperwork

Top

▪ Wood Species: Maple, Poplar, Maple
▪ Pieces: 3-Ply
▪ Grade: Plain
▪ Binding: 3-ply (White-Black-White)

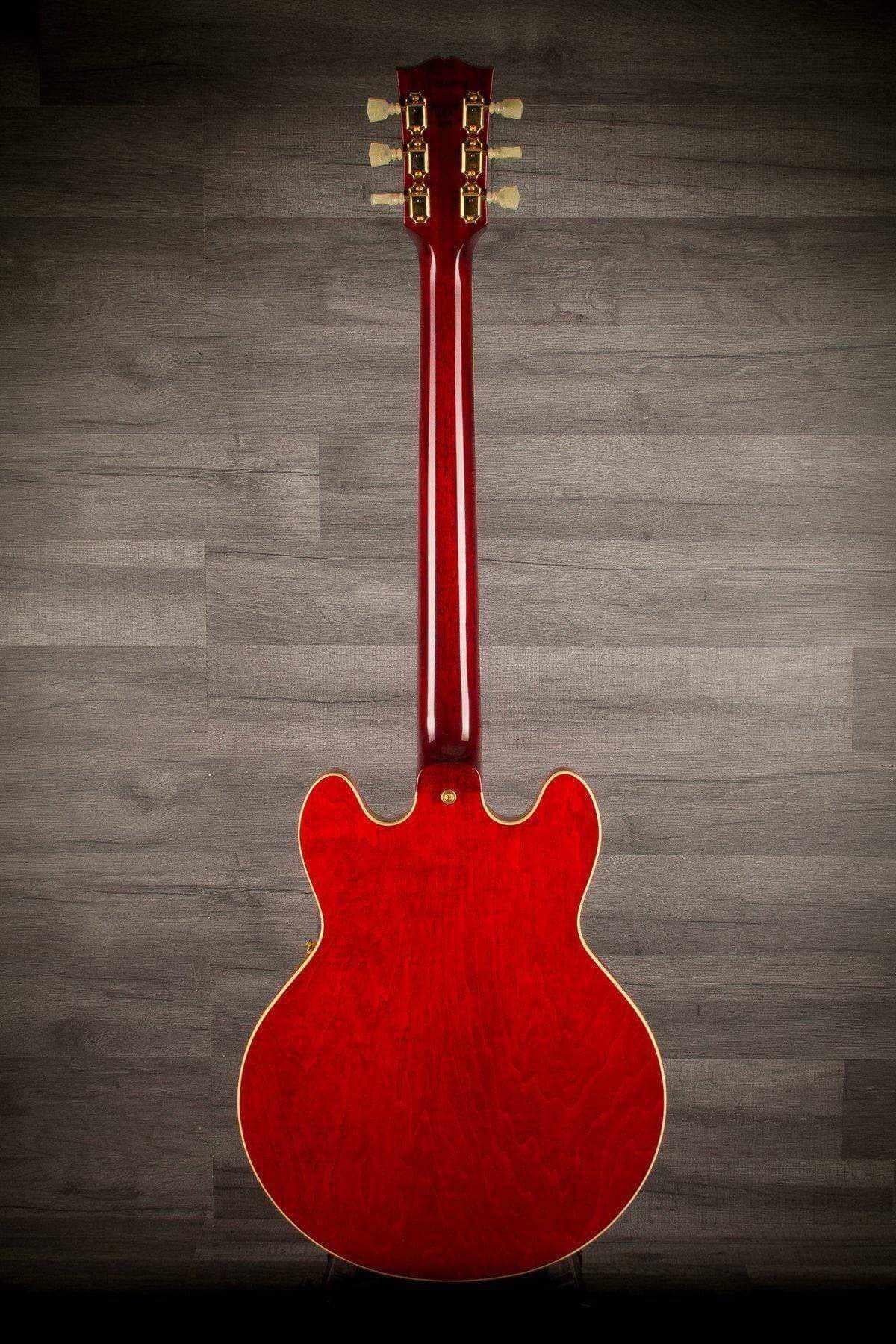

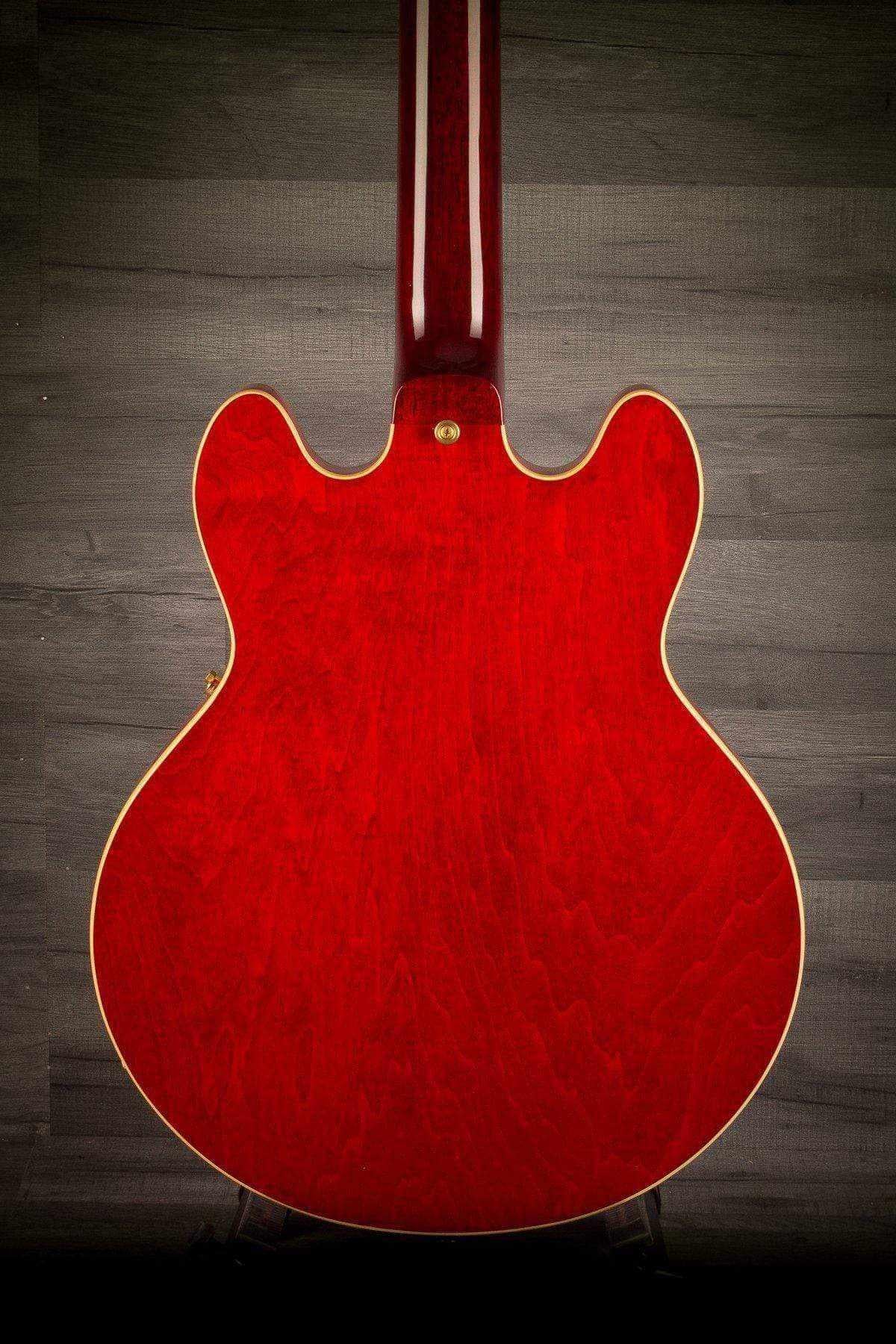

Back
▪ Wood Species: Maple, Poplar, Maple
▪ Pieces: 3-Ply
▪ Density: Plain
▪ Binding: White

Rims
▪ Species Wood: Maple, Poplar, Maple
▪ Pieces: 3-Ply
▪ Grade: Plain
▪ Weight
▪ Average Weight (body only): 2.1069 kg / 4.645 lbs

Neck

▪ Wood Species: Mahogany
▪ Pieces: 1
▪ Truss Rod: Historic
▪ Profile: Traditional "C"

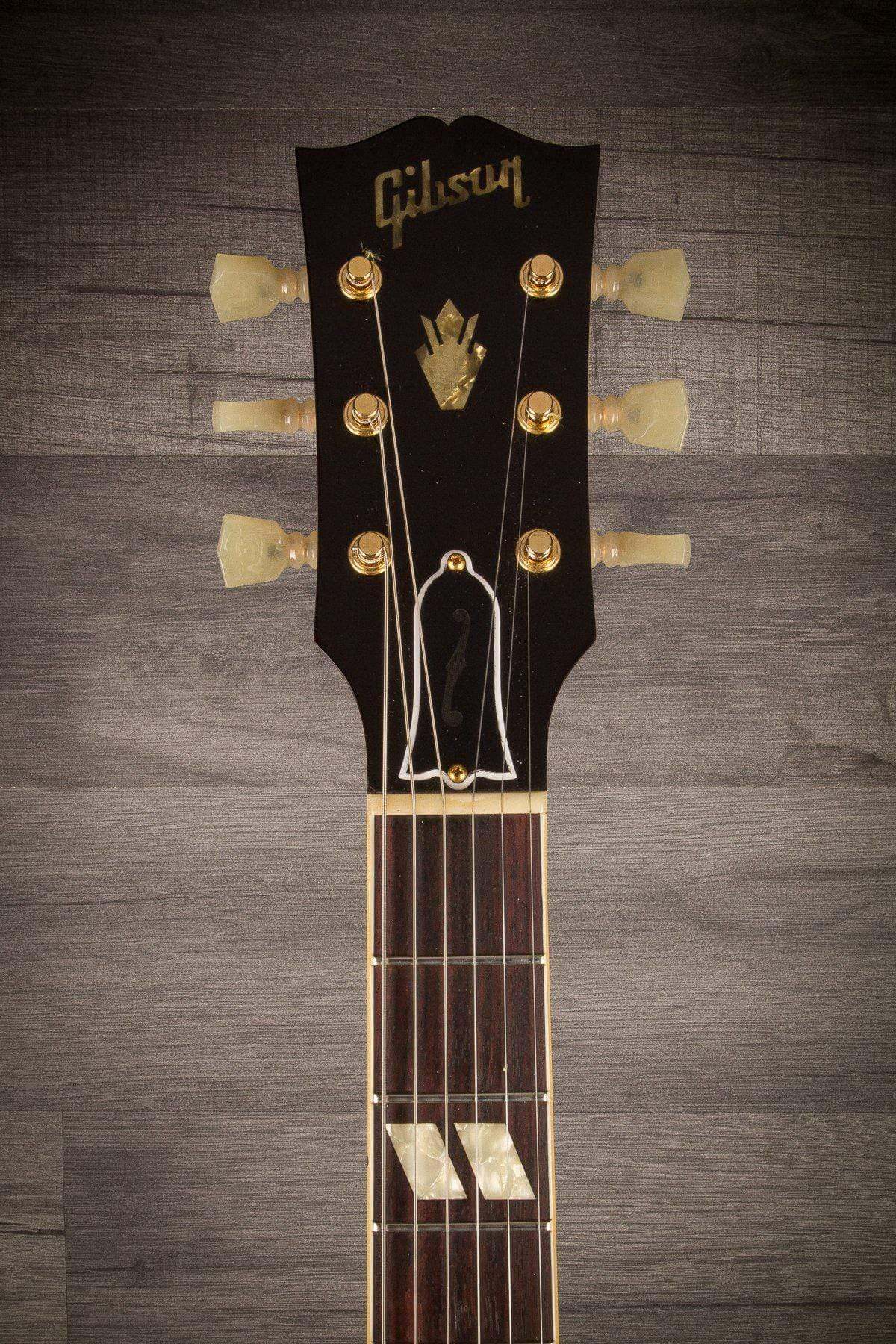

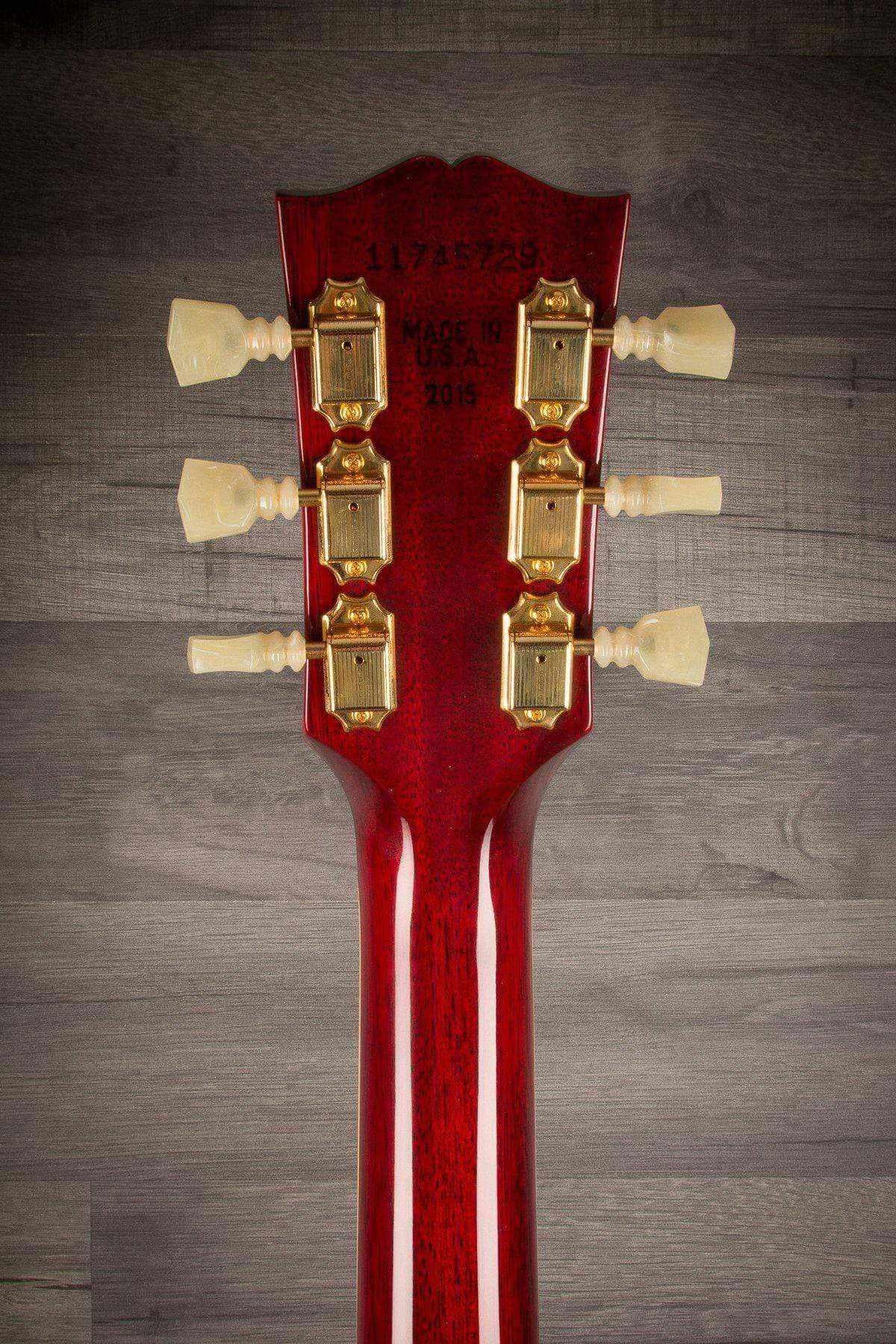

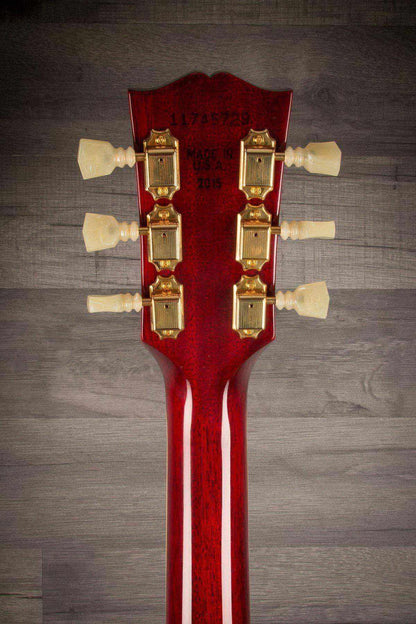

Peg Head

▪ Type: SP-1
▪ Inlay: Mother of Pearl Crown
▪ Logo: Mother of Pearl "Gibson"
▪ Headstock Angle: 17 degrees
▪ Tonal, Resonant, and/or Technical Effect: The wood, construction, and headstock pitch all contribute greatly to the tone, aiding this guitar's exceptional sustain and depth, and yielding a resonance that can be felt right through the body.

Neck Fit

▪ Joint Angle: 4 degrees
▪ Joint Angle Tolerance: 0 deg 0 min 15 sec
▪ Type: Mortise and Tenon
▪ Adhesive: Franklin Titebond 50
▪ Gauges Used:
▪ Pitch Height Gauge,Alignment Gauge

Nut

▪ Style: White
▪ Material: Bone
▪ Width: 4.2545 cm / 1.675"

Fingerboard

▪ Wood Species: Rosewood
▪ Pieces: 1
▪ Shade: Dark
▪ Radius: 30.48 cm / 12 "
▪ Frets: 22
▪ Nut/End of Board: 4.2545 cm / 1.675" @ nut, 5.6718 cm / 2.233" @ end of board
▪ Scale: 62.865 cm / 24.75"
▪ Binding: White
▪ Side Dots (Color): Black

Fingerboard Inlays

▪ Style: Split Parallelogram
▪ Material: Pearloid
▪ Dimensions: Large: 31.75 mm x 21.59 mm / 1.250" x 0.850"; Small: 44.45 mm x 5.715 mm / 1.75" x 0.225"
▪ Average Weight: 147.4175 gm / 5.200 oz

Hardware

▪ Tuning Keys
▪ Style: Kluson Double Ring Tulip Button
▪ Material: Body is stamped steel with plastic tulip button
▪ Weight: 22.6796 gm / 0.8 oz
Tuning Keys Details
▪ Tuning Ratio: 15:01
▪ Gear Type: Synchronized spur gear system
▪ What is allowable turn: +/- 4 degrees
▪ Plating specs: Gold

Bridge

▪ Style: No Wire ABR-1
▪ Material: Die cast alloy
▪ Plating Specs: Gold
▪ Part number: 430-10160
▪ Weight: 61.235 gm / 2.16 oz

Tailpiece

▪ Style: Lightweight Stop Bar
▪ Compensated: No
▪ Material: Aluminum
▪ Plating Specs: Gold
▪ Part number: 430-11739
▪ Weight: 113.3981 gm / 4.0 oz
Output Jack
▪ Style: 1/4" jack

Strap Buttons
▪ Material: Brass
▪ Plating Specs: None
▪ Part numbers: 430-19521
▪ Weight: 2.268 gm / 0.080 oz


Truss Rod Cover
▪ Style: Black and white bell with engraved F-Hole
▪ Part Number: 430-19802
 Knobs
▪ Style: Black Top Hats w/ Gold Inserts
