Mod Devices Dwarf Pedal

Three modes of operation

To give you the most flexible range of performances available, the Dwarf features three modes to use your unit in. In Snapshot mode, you can instantly switch between different... See more

Three modes of operation

To give you the most flexible range of performances available, the Dwarf features three modes to use your unit in. In Snapshot mode, you can instantly switch between different snapshots that store the states of each and every parameter within your pedalboard. Pedalboard mode allows you to navigate through all the pedalboards within your device, giving you the ultimate platform to perform live on to cycle through between songs in your setlist. Lastly, Control Mode lets you tweak and control chosen parameters inside your pedalboard.

Infinite patching possibilities

A hotly contested topic surround modern multi-effects unit is what the capabilities of routing are. Whether you have the freedom to plug in virtual cables wherever you want, or whether having a set-path to forge your sound is best for the user. The Dwarf doesn't lean to one side or the other but instead encourages you to find what works best for you, allowing you the freedom of choice. Assemble patches with a few simple clicks or deep dive into the computer editor and chose to build your preset using a modular sense of virtual cables, the choices are unlimited.

Intuitive interface

Using an innovative drag and drop system, it has never been this easy to create your sounds quickly and easily and enjoy more time playing. The highly legible MOD matchless graphical interface allows for as many parallel paths as you want, whereby you can feed signals in and out of your signal path at any points along the chain. Colour-coded cables are even there to provide you with a visual representation of your audio, MIDI and CV signals.

Features

• Limitless possibilities within your rig
• Three endless encoders with a knurled surface for easy navigation
• Three soft-touch buttons
• Three highly robust footswitches
• Full range of connectivity with stereo inputs and outputs, USB-B, USB-A, MIDI and headphones
• Momentary and latching footswitching options
• Assemble as many pedalboards as you want and organise them in banks
• Navigate and adjust pedalboards directly from the device in standalone or via your computer
• Optimised for hands-free operation through easy navigation between settings
• Over 115 amp and cabinet models
• Over 180 Effects
• 30+ virtual instruments
• 30+ MIDI utilities
• Incredibly robust and durable construction, perfectly suited for the road
• Facilitates open-source technology
• Three modes of operation (Navigation, Control and Tool mode)

Specifications

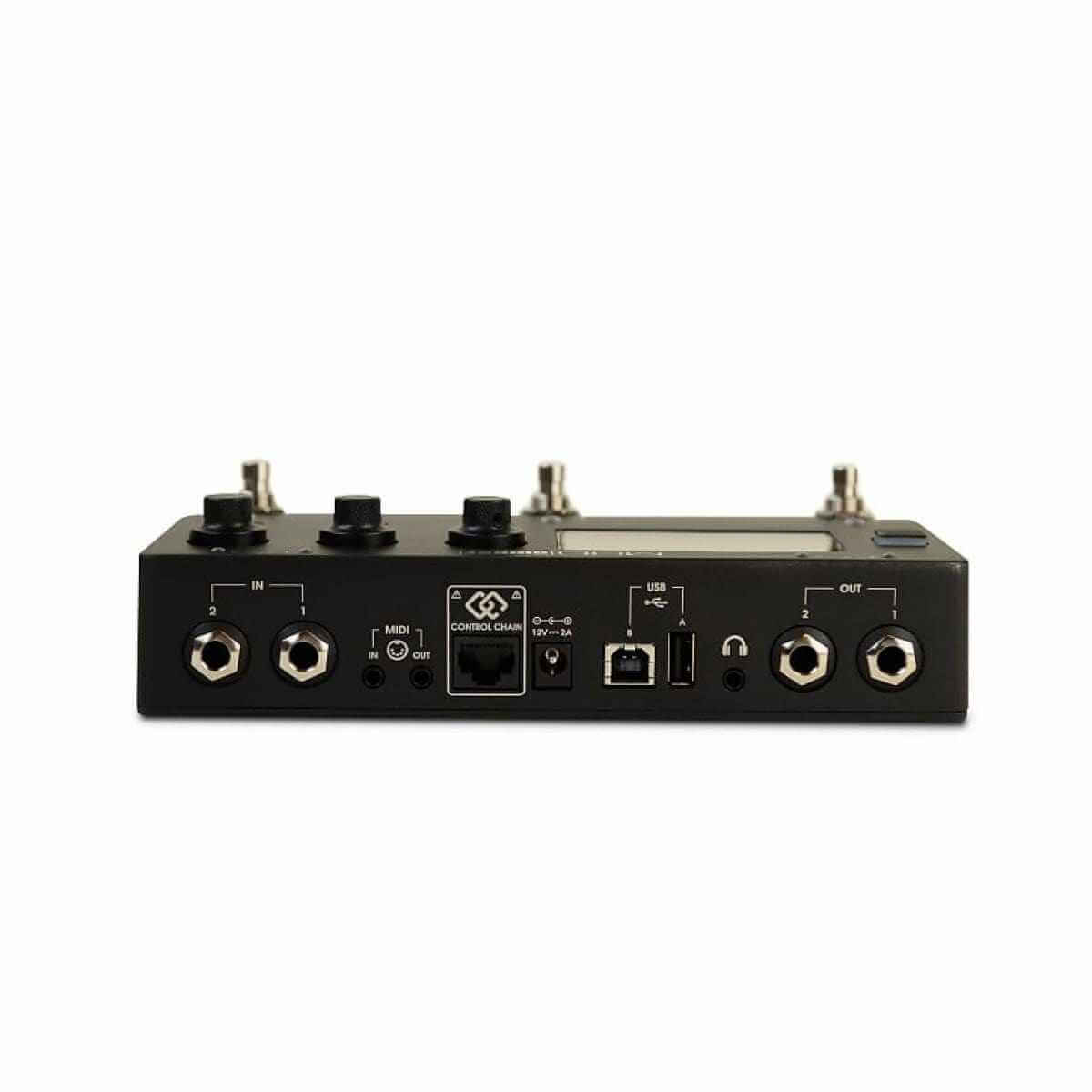

Inputs and outputs

• Dual 6.35mm TRS independent audio inputs, with gain configurable from -12dB to +35dB, 1M Ohm input impedance, unbalanced
• Dual 6.35mm TRS independent audio outputs, with gain configurable from 0dB to -127dB, balanced or unbalanced
• 3.5mm TRS Headphone output, with gain configurable from -33dB to +12dB
• 3.5mm TRS MIDI type-A input and output
• USB Type-B Device port for connecting to a computer
• USB Type-A Host port for MIDI controllers, Bluetooth and Flashdrives
• Control Chain port for MOD peripherals
• Power input on a 5.5 x 2.1 x 10mm barrel connector
• Processor:Quad Core ARM A35 CPU at 1.3GHz, 1GB RAM, 8GB storage

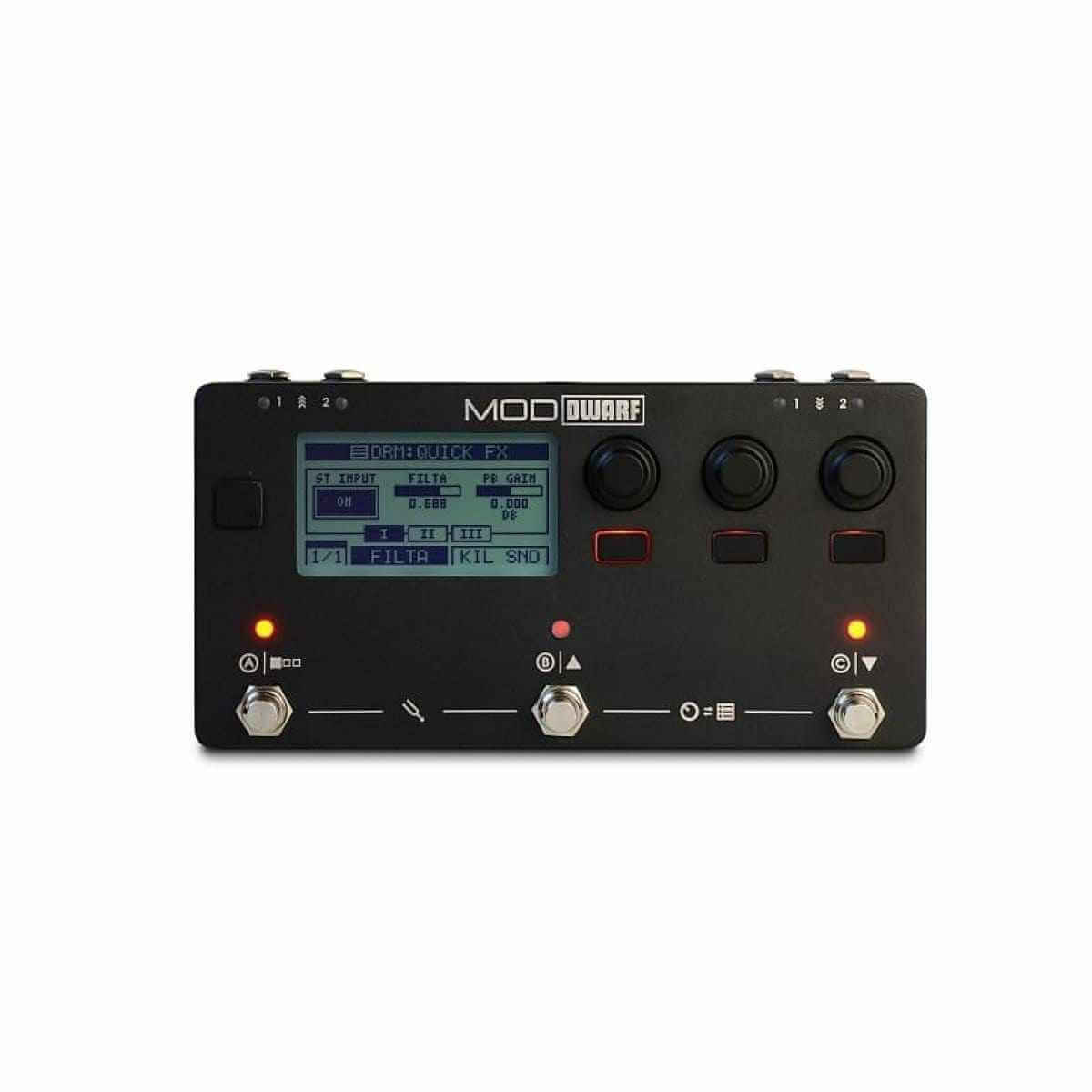

• Controls: 3 endless knobs, 3 footswitches (with LEDs), 3 pushbuttons and a menu button
• Screen: 2.9 inch LCD display
• Dimensions (L x W x H): 105 x 202 x 54mm
• Weight: 0.8kg

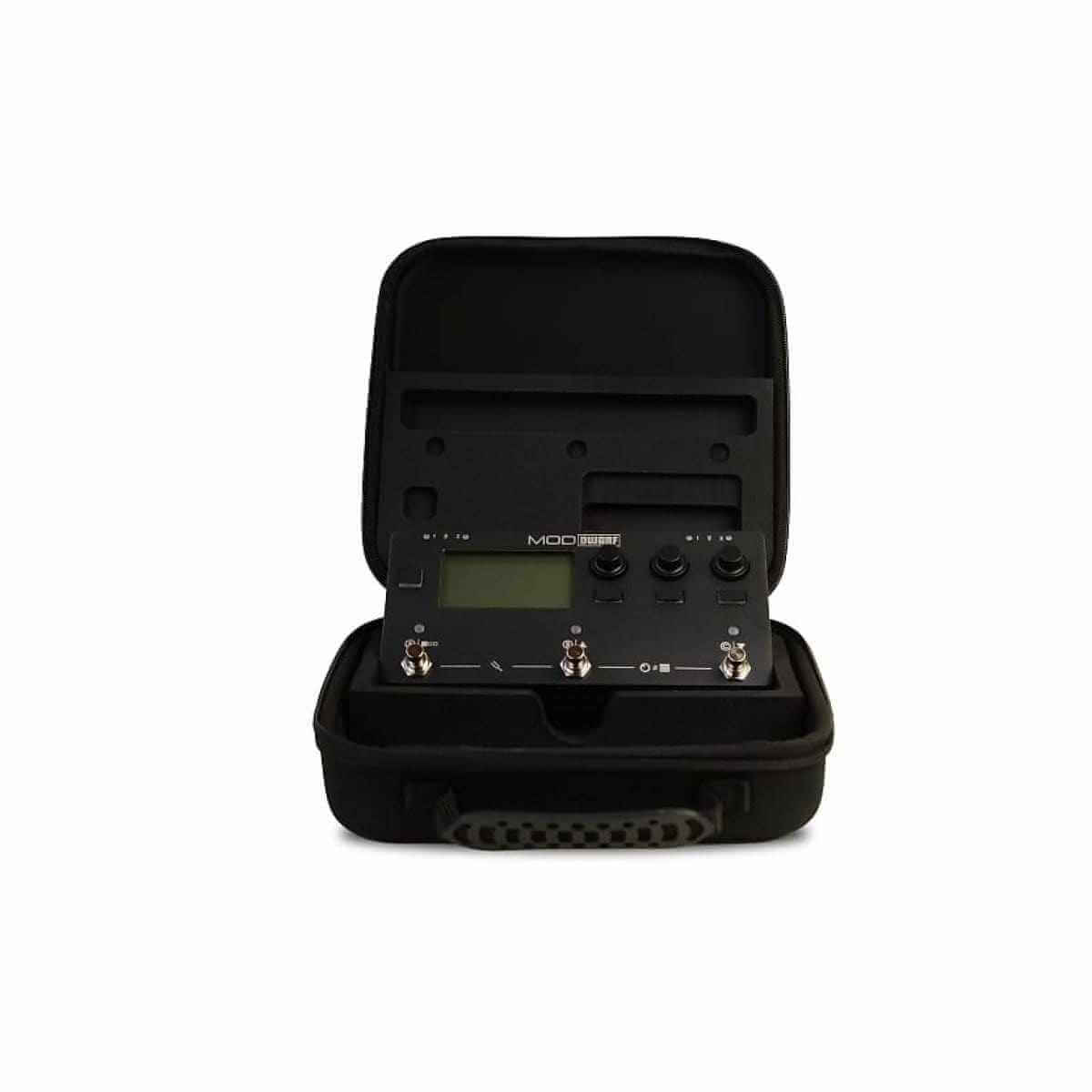

• What’s in the box: MOD Dwarf, USB cable, Power supply, USB Drive, Rubber strips, Velcro strips, Protective case, Premium Guitar Plugins Pack
• Product code: MOD-AP_MDW
