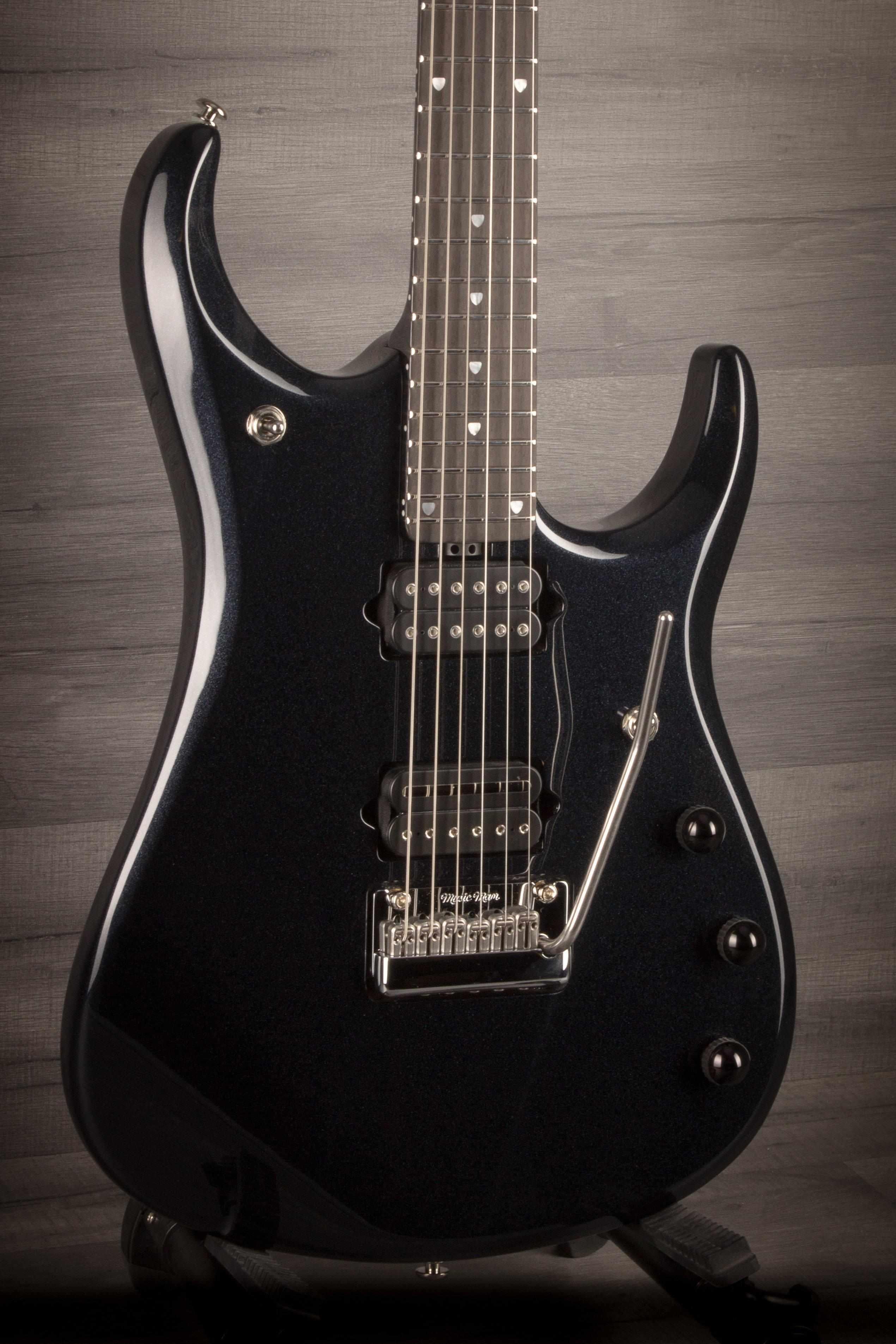

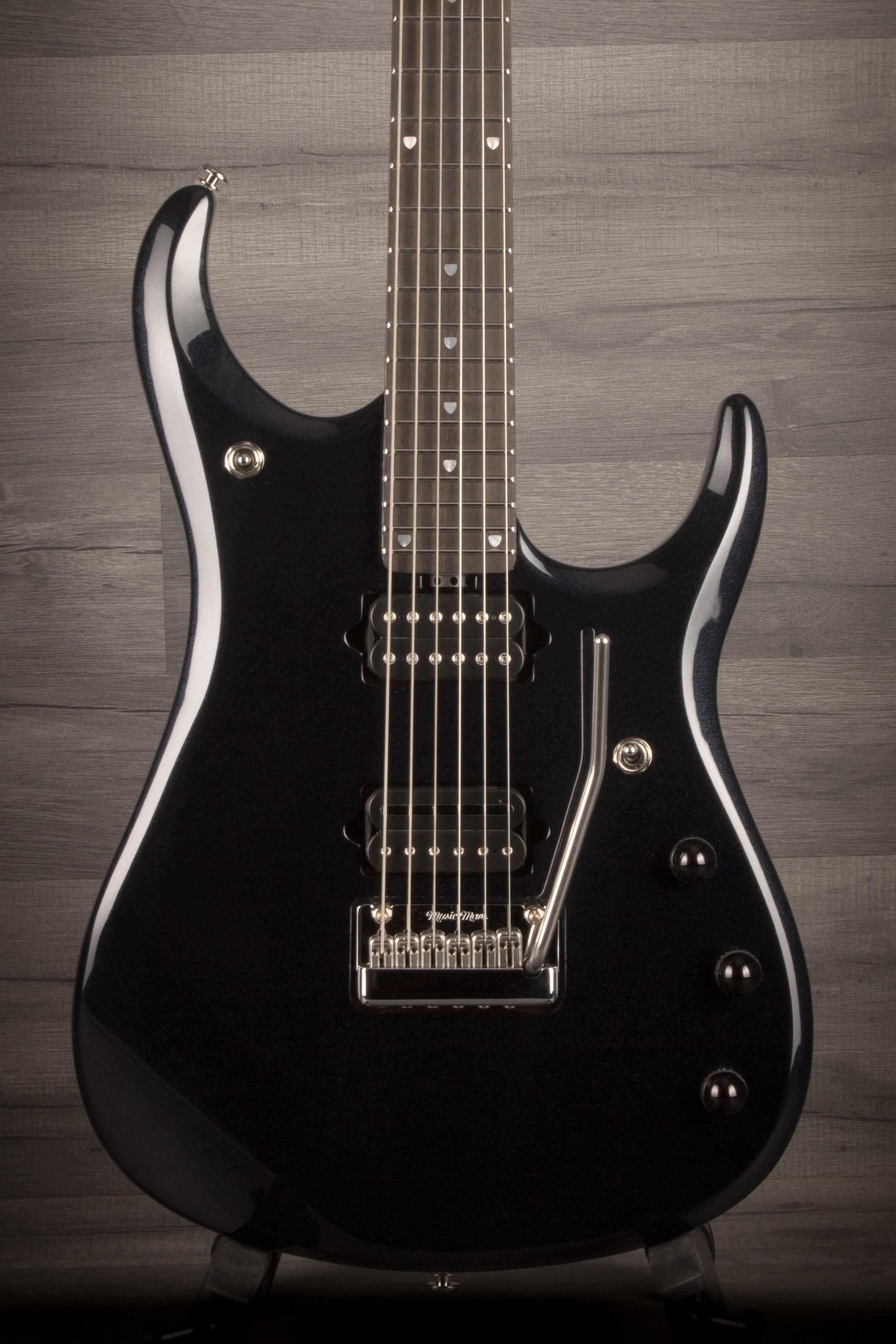

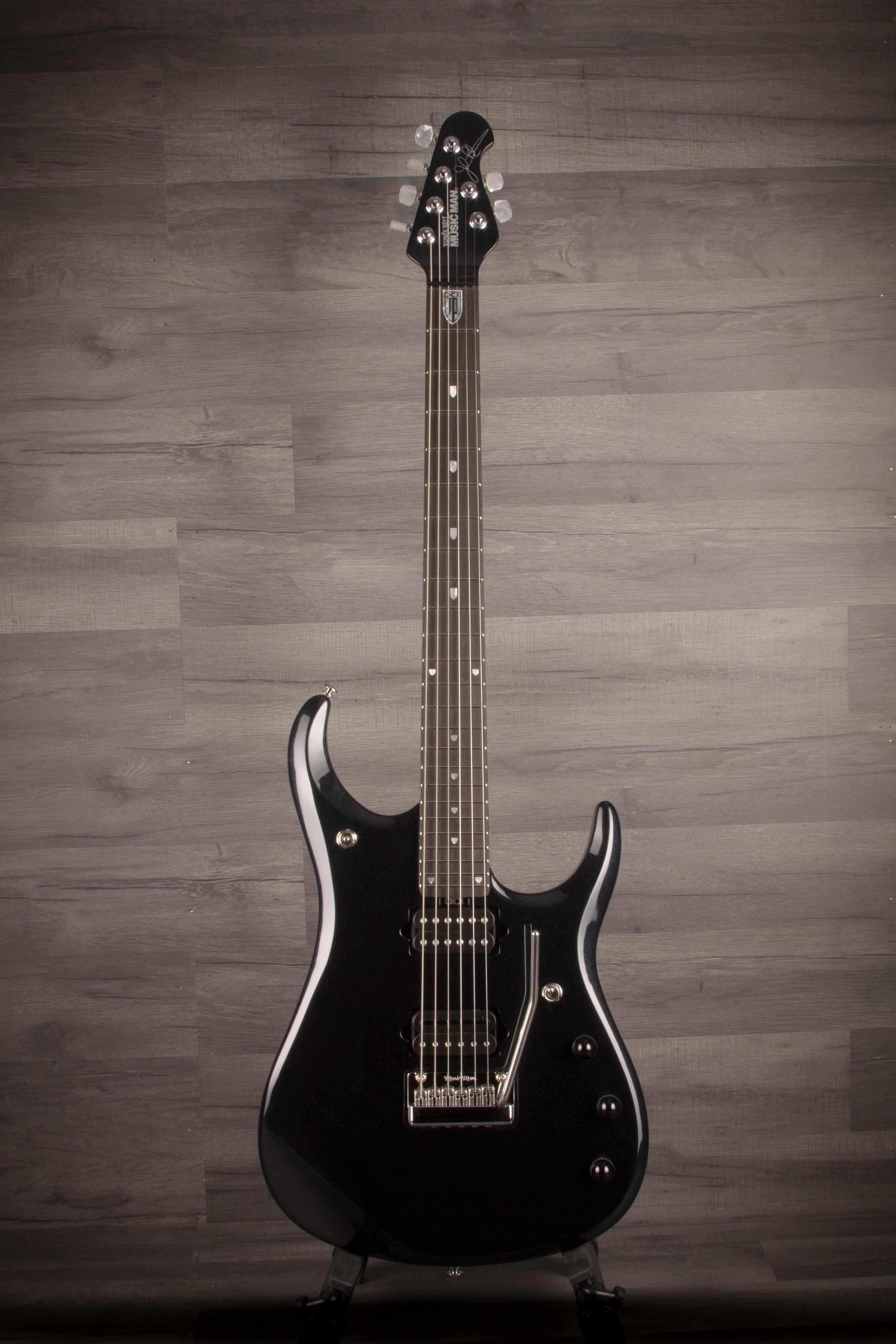

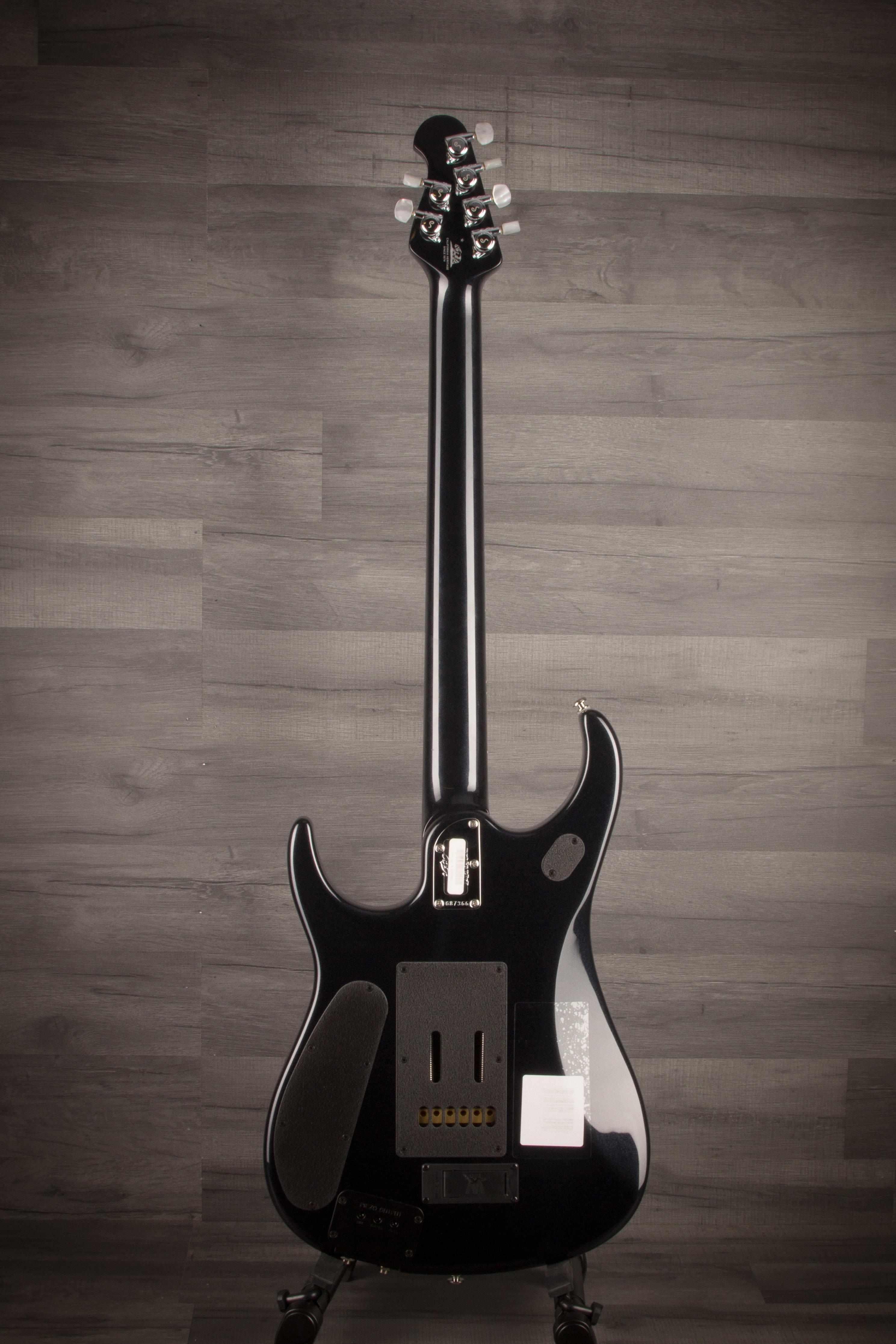

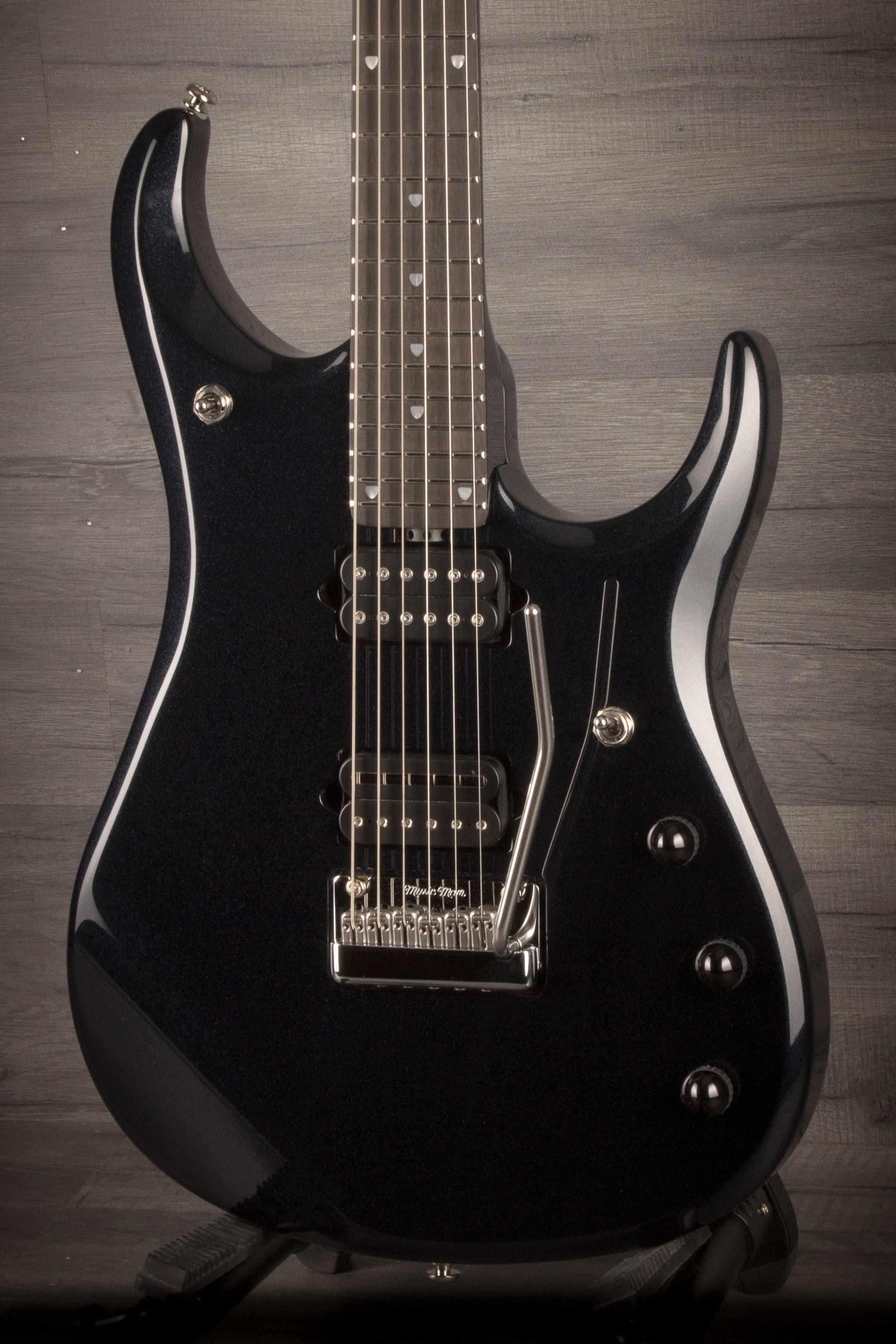

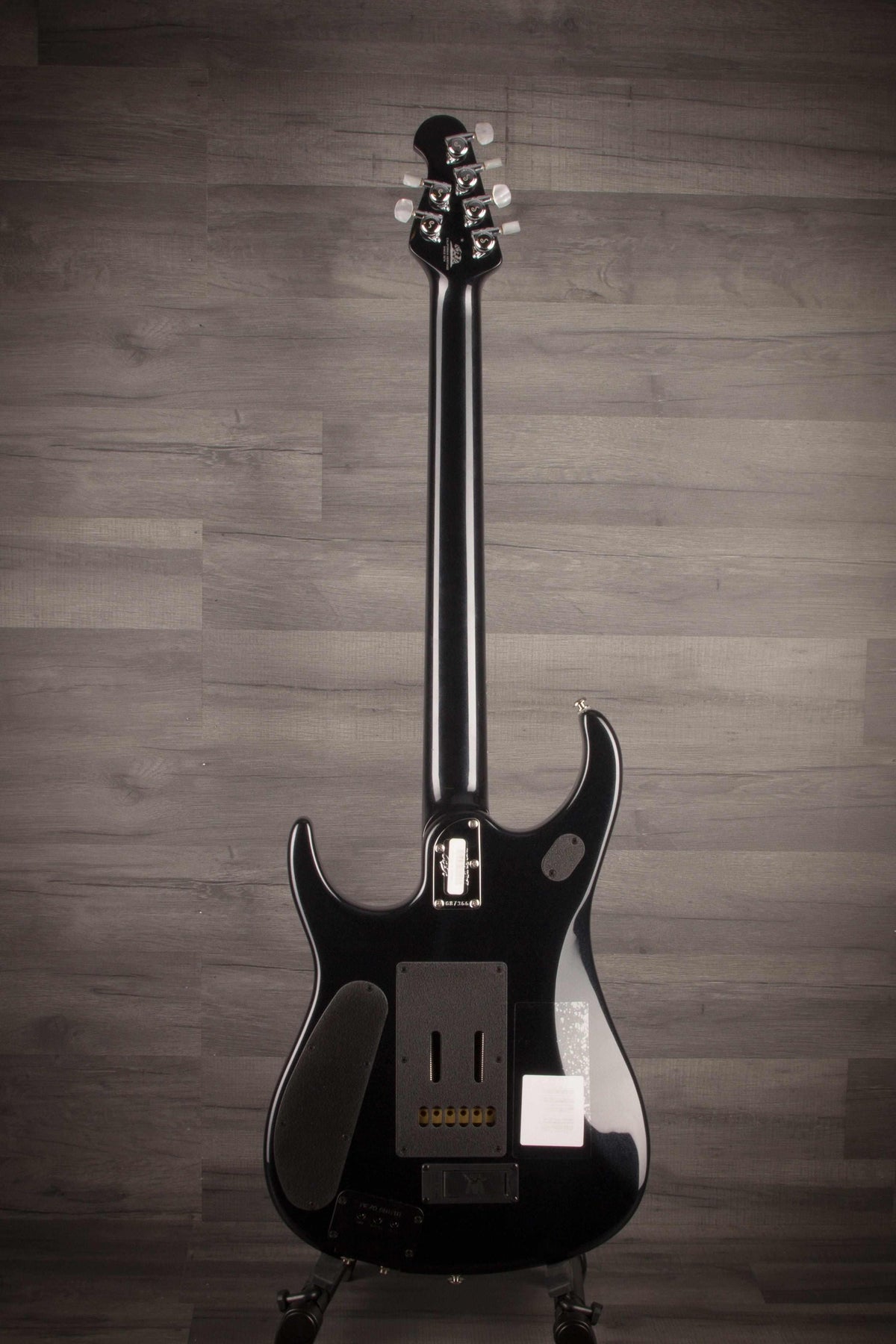

MusicMan JPXI Onyx

Music Man JPXI John Petrucci Electric Guitar Specifications

• Size (W x D x H): 12 3/8 x 1 3/4 x 37 inches (31.4 x 4.5 x 94.0 cm)
• Weight: 7 pounds 4 ounces (3.29 kg)
• Body Wood: Alder with maple top and mahogany Tone Block
• Body Finish: High gloss polyester
• Body Color: Onyx

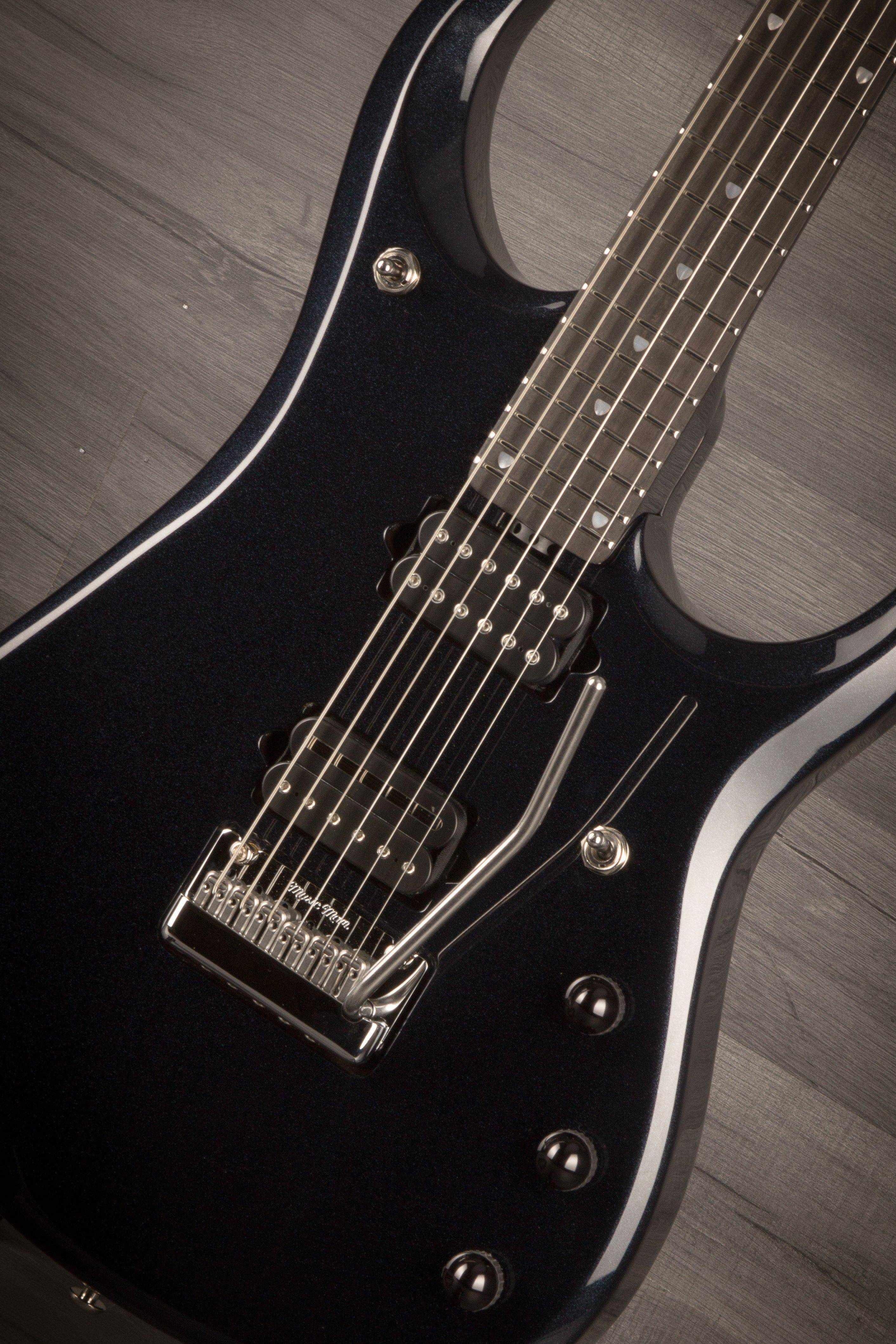

• Bridge: Custom John Petrucci Music Man in. Piezo floating tremolo, made of chrome plated, hardened steel with solid steel saddles
• Scale Length: 25 1/2 inches (64.8 cm)
• Neck Radius: 20 inches (50.8 cm)

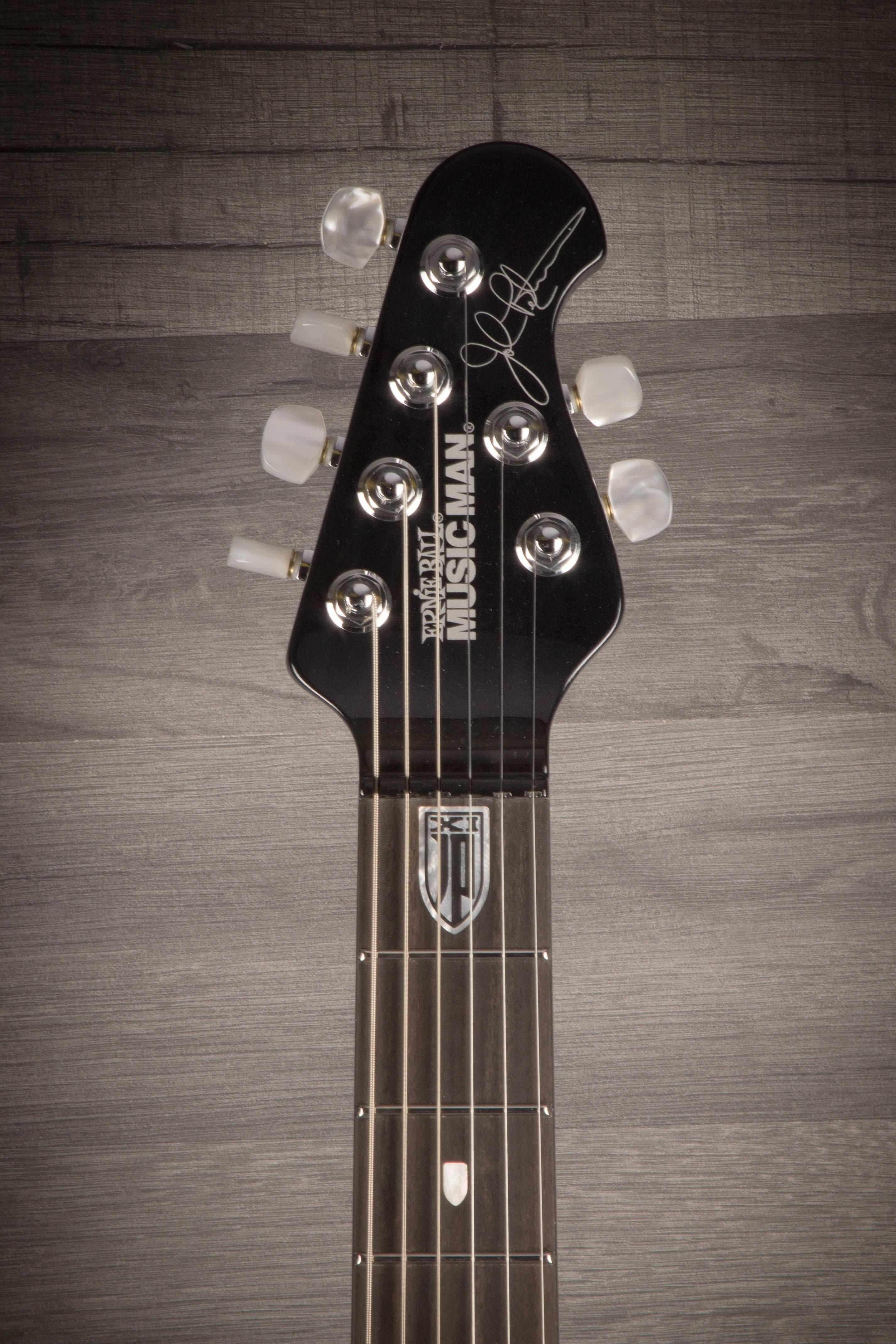

• Headstock Size: Only 5 7/8 inches (14.9 cm) long
• Frets: 24 - Medium Jumbo profile
• Neck Width: 1 11/16 inches (43.0 mm) at nut, 2 1/4 inches (57.2 mm) at last fret
• Neck Wood: Select mahogany
• Fingerboard: Ebony
• Fret Markers: Custom JPXI Inlays
• Neck Finish: High gloss polyester

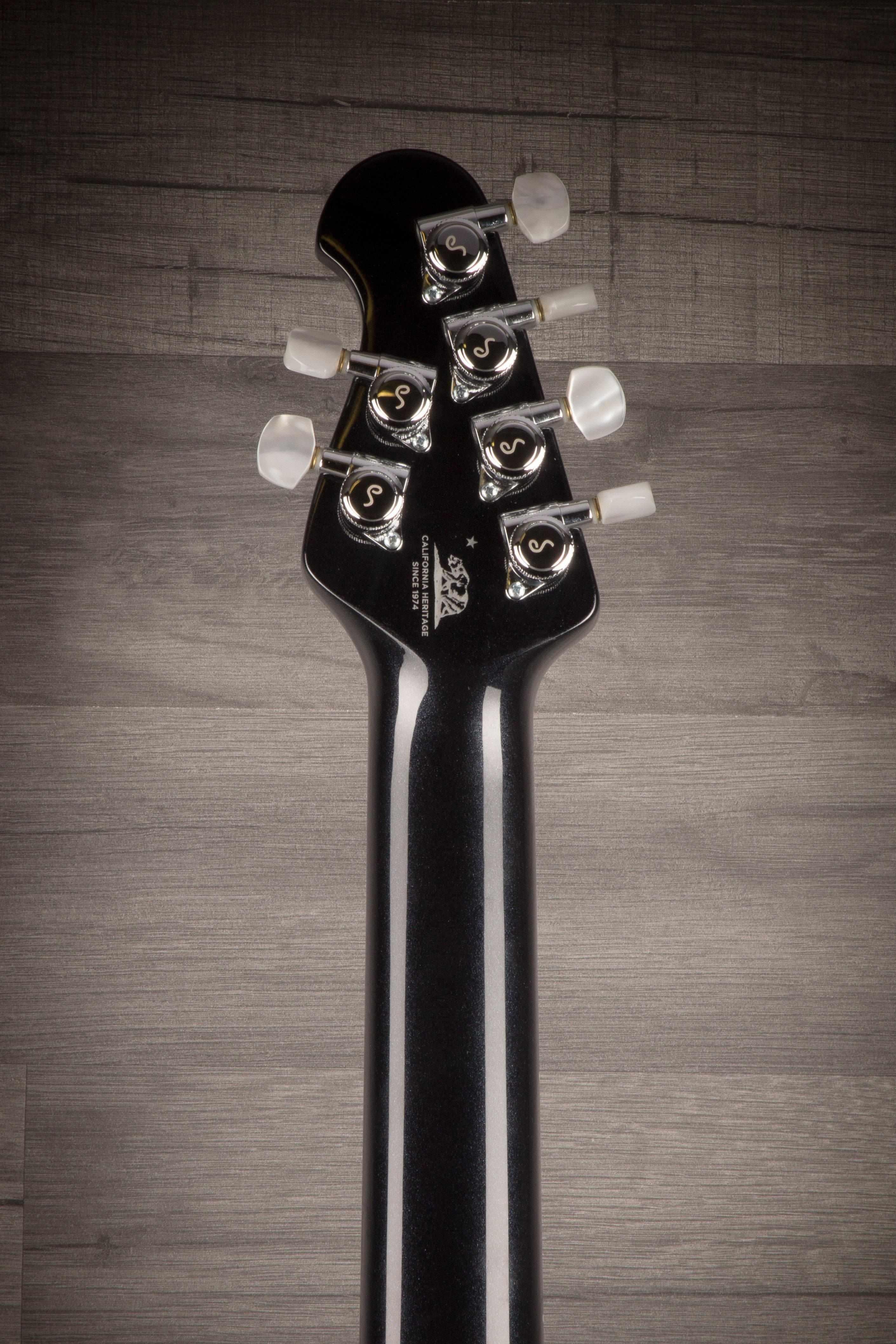

• Tuning Machines: Schaller M6-IND locking with pearl buttons
• Truss Rod: Adjustable - no component or string removal
• Neck Attachment: 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
• Electronic Shielding: Graphite acrylic resin coated body cavity and aluminum control cover
• Controls: 500kohm volume and tone - .022µ tone capacitor
• Switching:
  • 3-way toggle pickup selector, with custom center position configuration
  • 3-way toggle piezo/magnetic selector

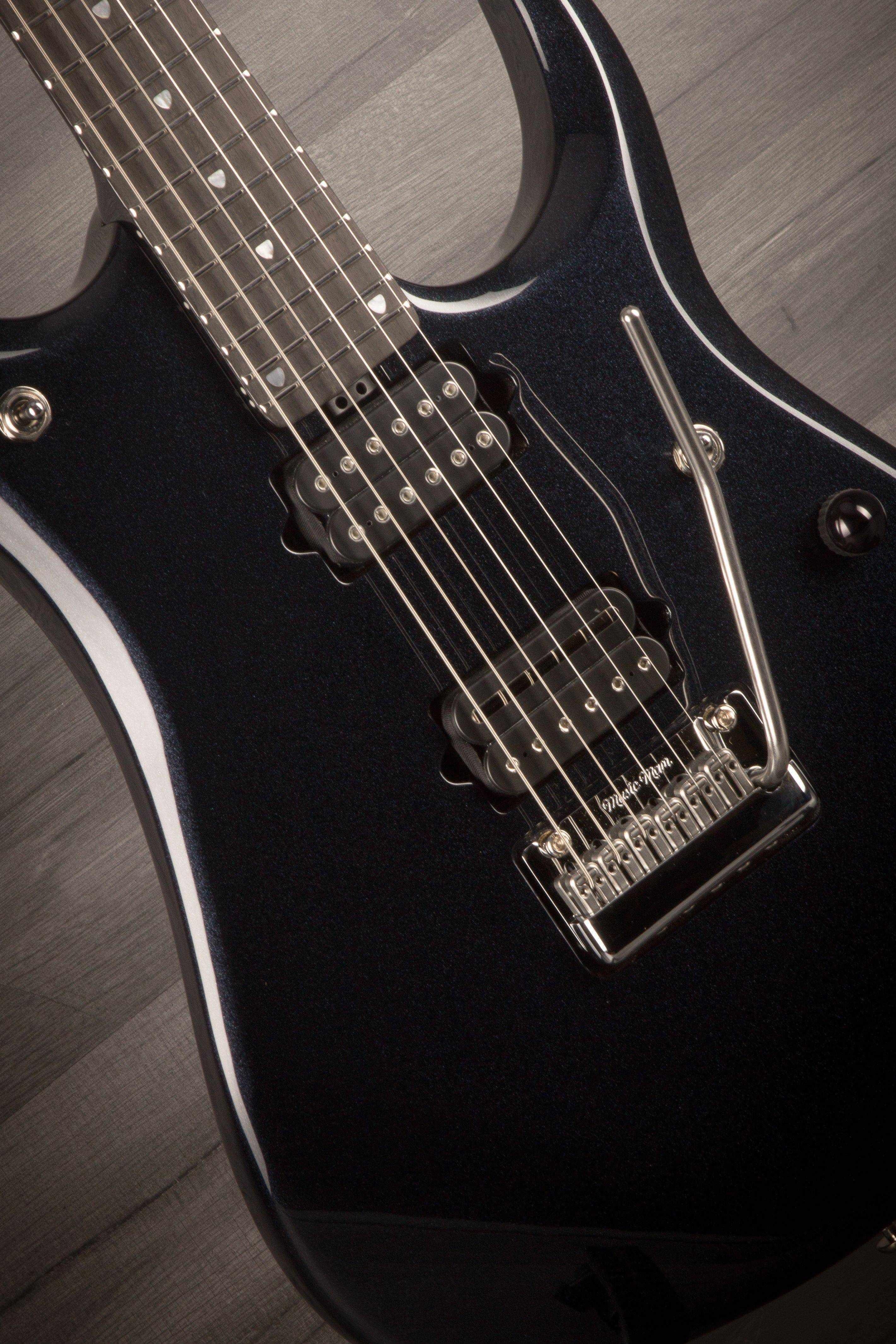

• Pickups:
  • HH - 1 DiMarzio Liquifire - neck
  • 1 DiMarzio Crunch Lab - bridge
  • Piezo bridge pickup
