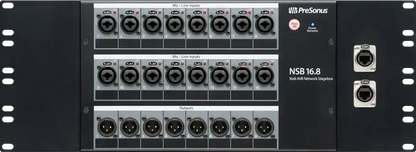

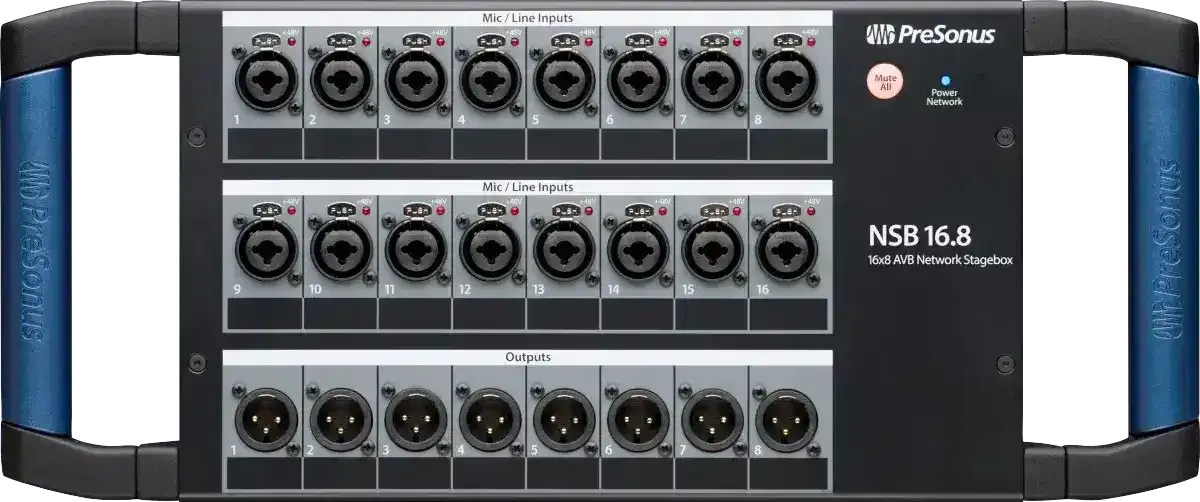

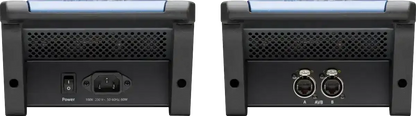

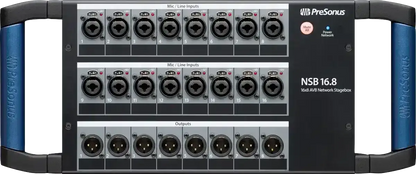

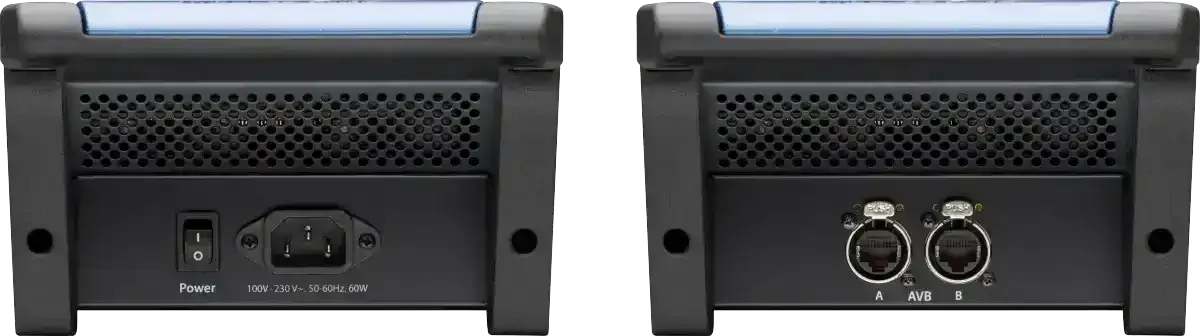

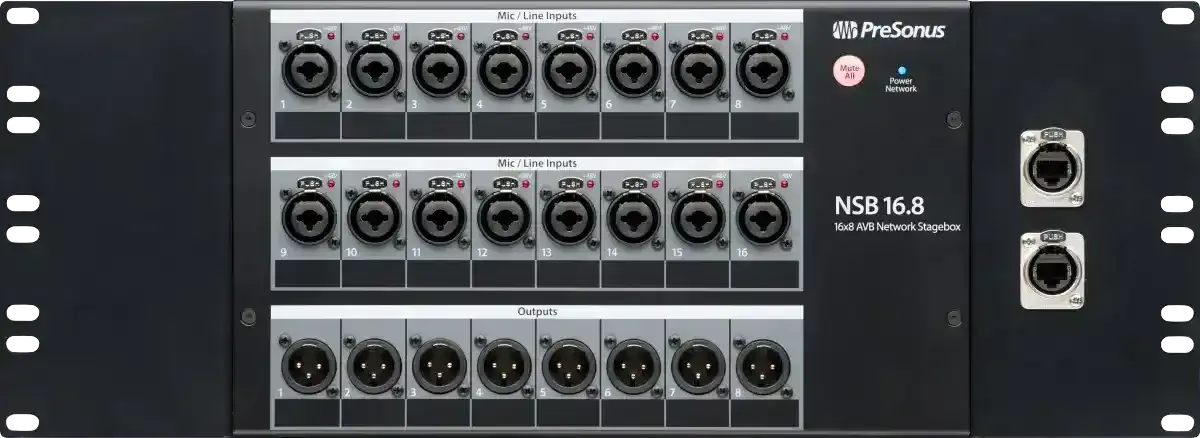

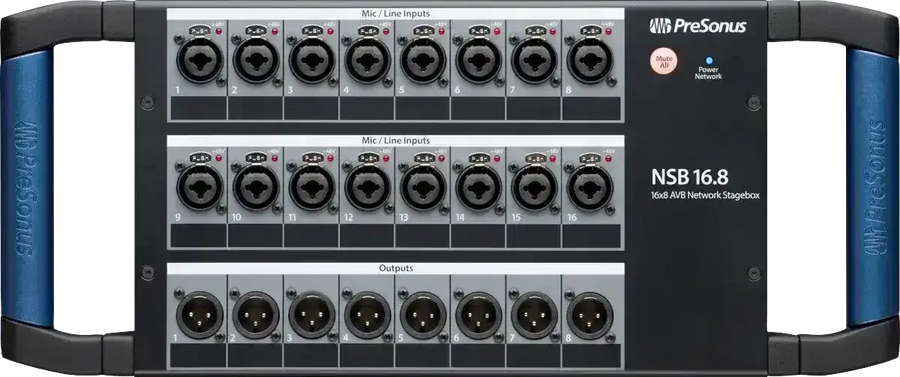

16x8 AVB-networked Stage Box

Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. You also get 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 16.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.

FEATURES


  • Rugged stage box enclosure with handles
  • 16 locking mic/line inputs and 8 locking XLR outputs
  • 16 remote-controllable XMAX preamps
  • Gain compensation for shared inputs
  • 2 AVB ports with locking XLR Ethernet jacks
  • 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)
  • Easy setup and control from StudioLive® Series III consoles and from free PreSonus® UC Surface software
  • Line Input Connection Type
  • 1/4" TRS, Balanced
  • Line Inputs Frequency Response
  • 20-20 kHz (±0.5 dBu at Unity Gain)
  • Line Inputs Impedance
  • 10 kΩ
  • Line Inputs Maximum Level
  • +18 dBu
  • Line Inputs Signal To Noise Ratio
  • 94 dB
  • Line Inputs Total Harmonic Distortion
  • <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
  • Microphone Input Connection Type
  • XLR Female, Balanced
  • Microphone Preamp Common Mode Rejection Ratio
  • 65 dB (1 kHz at Unity Gain)
  • Microphone Preamp Frequency Response
  • 20-20 kHz (±0.5 dBu at Unity Gain)
  • Microphone Preamp Gain Control Range
  • 0 dB to +60 dB
  • Microphone Preamp Input Impedance
  • 1 kΩ
  • Microphone Preamp Maximum Input Level
  • +12 dBu (Unity Gain)
  • Microphone Preamp Signal To Noise Ratio
  • 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
  • Microphone Preamp Total Harmonic Distortion
  • <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
