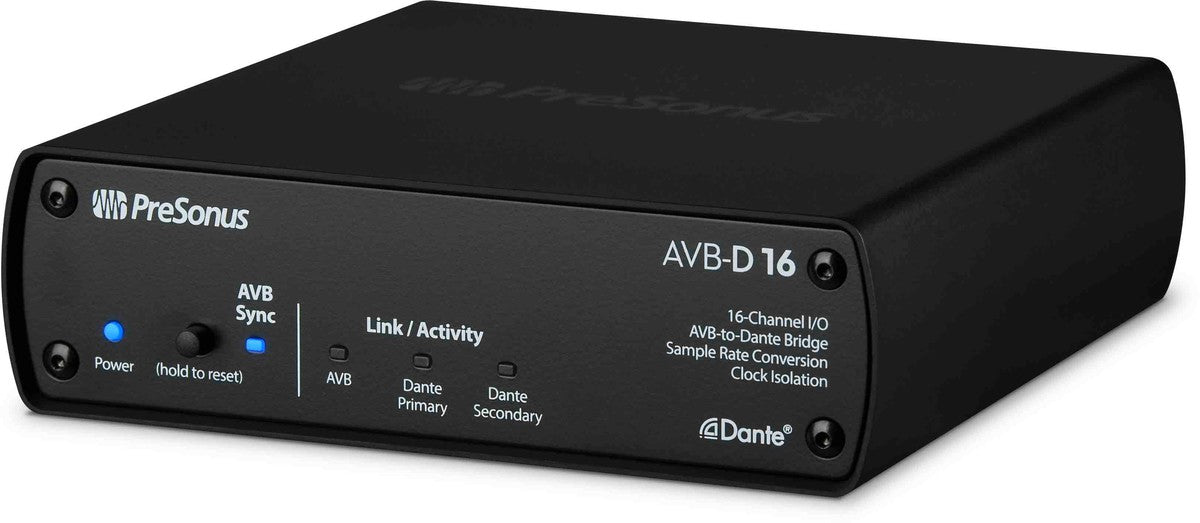

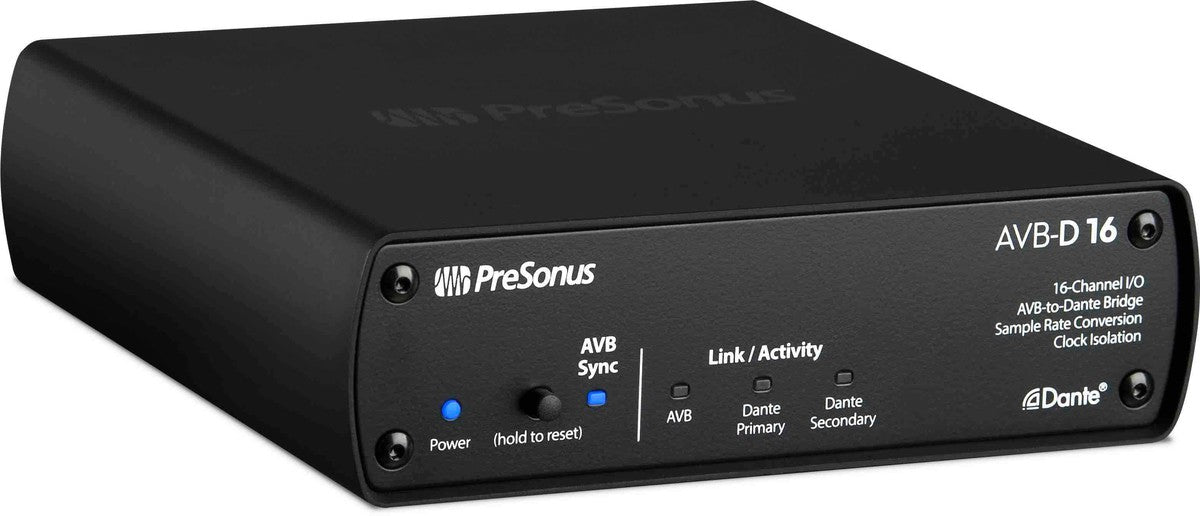

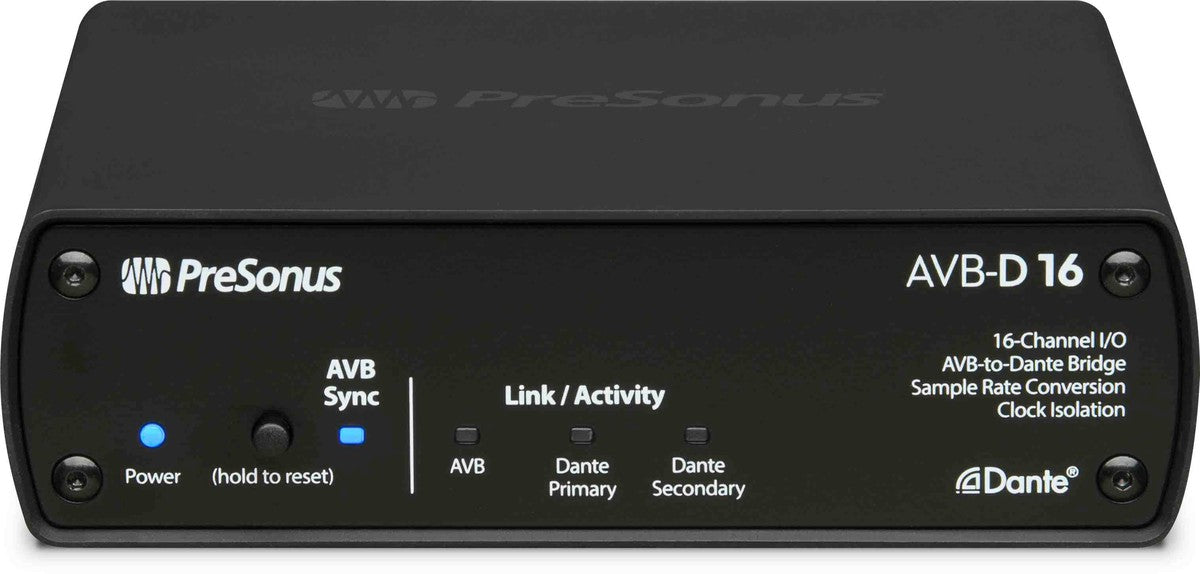

Presonus - AVB-D 16

16 Channel I/O AVB to Dante Bridge

The PreSonus AVB-D16 is the first plug-and-play endpoint that bridges AVB and Dante™ networks, bringing Dante™ compatibility to the StudioLive Series III ecosystem.

The AVB-D16 bridges AVB and Dante networks allowing up to 16 channels to be sent to and from each network protocol; built-in Asynchronous Sample Rate Conversion ensures precision clock isolation between networks; easily patch up to 16 audio sources on your StudioLive Series III ecosystem products to a Dante network and vice versa.

The PreSonus AVB-D16 is the first plug-and-play endpoint that bridges AVB and Dante™ networks allowing up to 16 audio channels to be sent between an AVB and Dante network with one simple device, making it the perfect solution to connect your StudioLive Series III AVB ecosystem to your favorite Dante-equipped products like the PreSonus CDL-12 constant directivity loudspeaker. Whether you’re looking at your Dante network setup from Audinate’s Dante Control software or managing your StudioLive Series III AVB ecosystem from UC Surface or a StudioLive Series III console touchscreen, the AVB-D16 presents itself as a simple 16x16 network device. Built-in Asynchronous Sample Rate Conversion ensures that the AVB-D16 provides precision clock isolation between your AVB and Dante networks for pristine, clear audio with no dropouts or artifacts. It also allows you to run different sample rates on the AVB and Dante networks. So even if you're operating a Dante network at 96kHz, you can still connect streams between your StudioLive Series III AVB network operating at 48kHz with total confidence that the audio will be clean and error-free.

SPECIFICATIONS

•  16 x 16 AVB
•  16 x 16 Dante
•  Asynchronous Sample Rate Conversation
•  Precision clock isolation

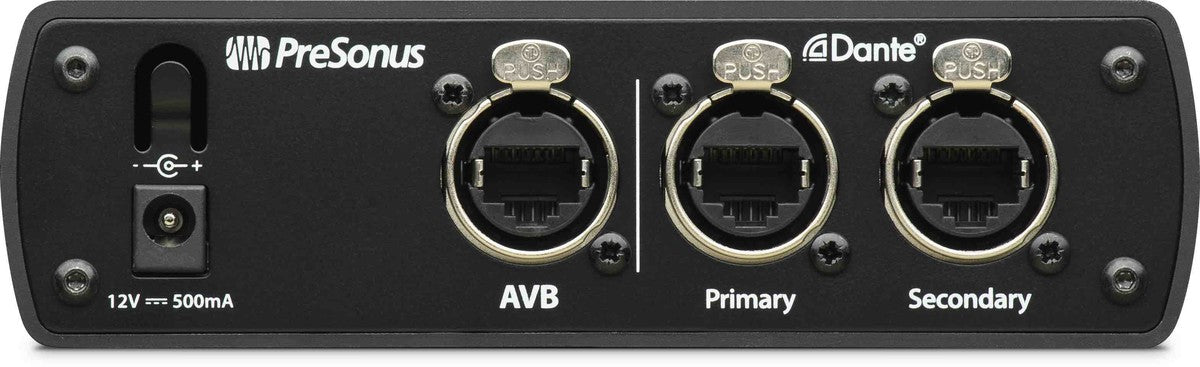

•  1 AVB port on locking etherCON
•  2 Dante ports on etherCON
•  Use multiple AVB-D16 AVB-to-Dante bridges to add more channels

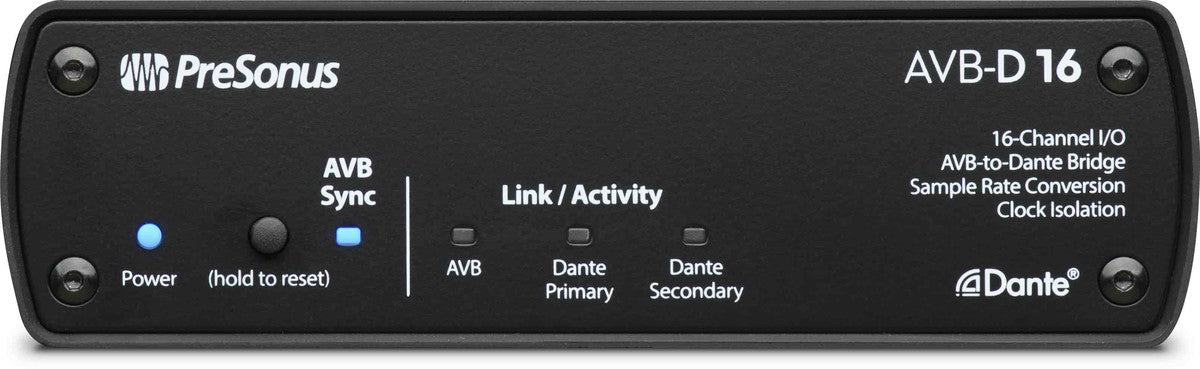

•  Network Link/Activity indicators
•  Support for 44.1kHz and 48kHz (AVB and Dante)
•  Support for 88.2kHz and 96kHz (Dante)
•  Rugged metal chassis
