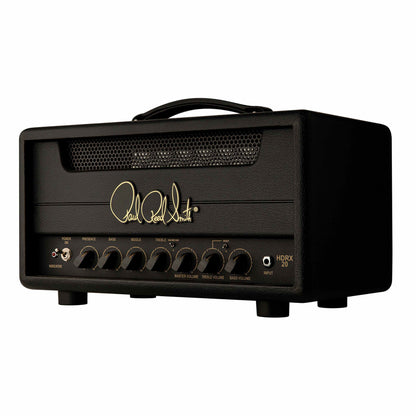

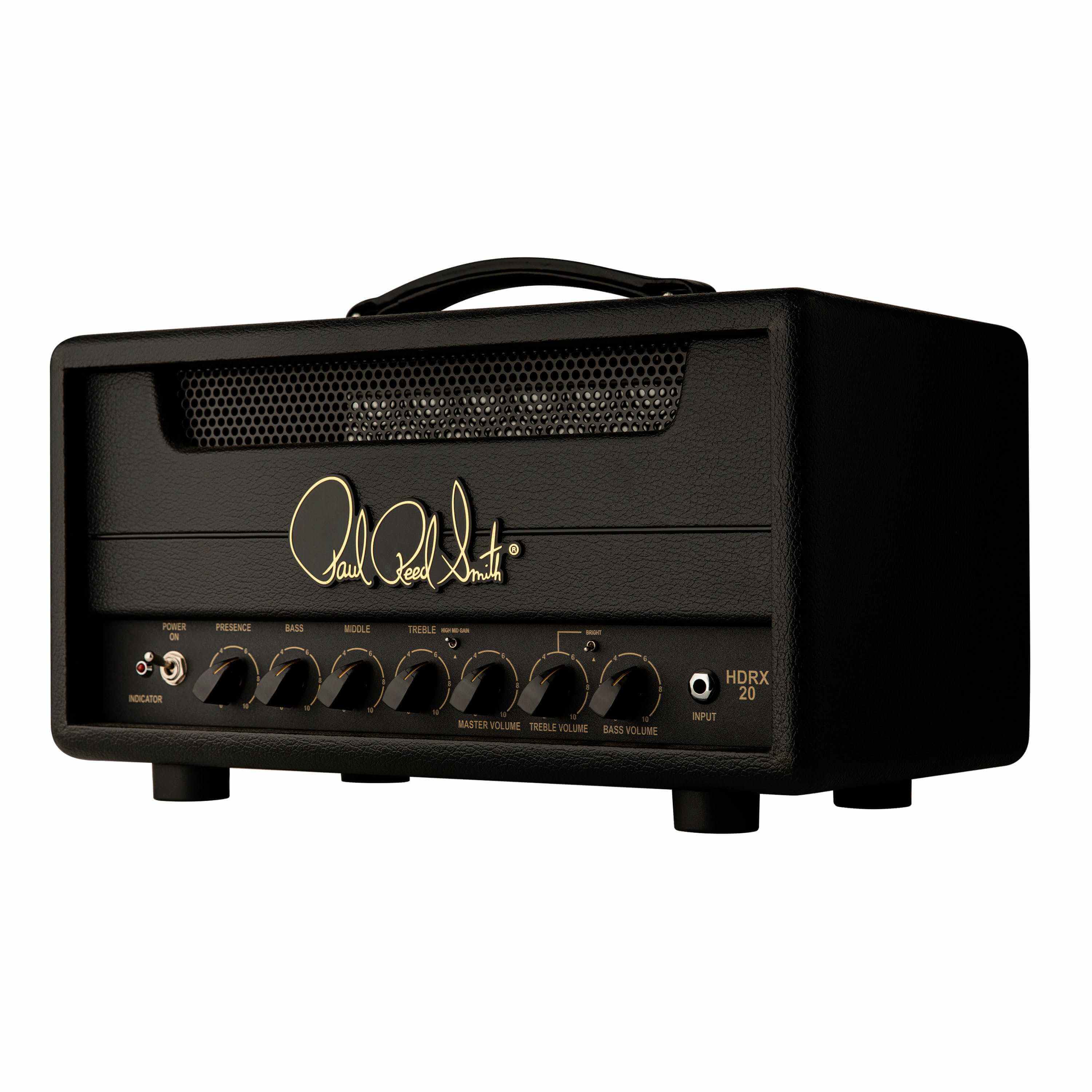

PRS Guitar Amplifier - HDRX 20 Hendrix Circuit Valve Amp Head

Specifications

Electronics

• Wattage (Nominal): 20

Tubes

• Power Tubes: 5881
• Preamp Tubes: 3x 12AX7
• Preamp Positions: V1 - Input, V2 - Cathode Follower, V3 - Phase Inverter

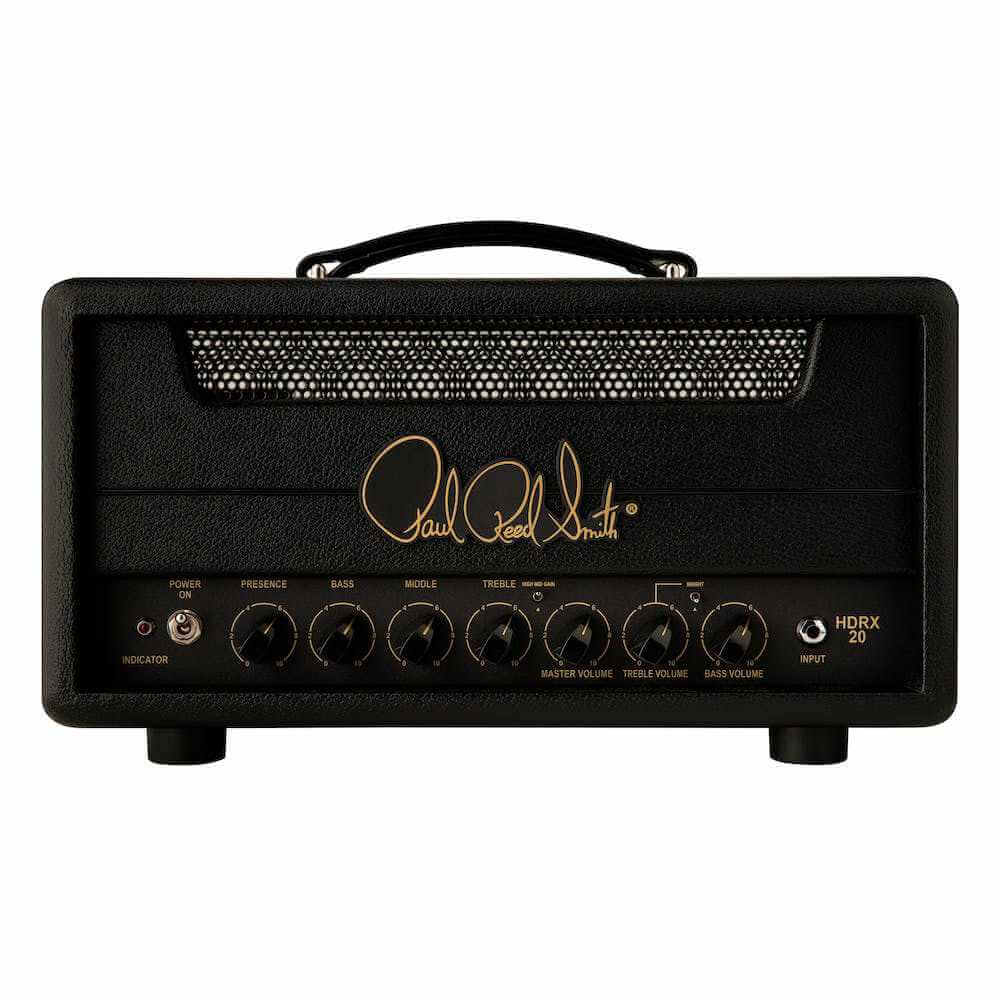

Front Panel Controls

• Channel 1 Controls: Bass Volume
• Channel 2 Controls: Treble Volume, Bright (Off/Bright)
• Common Controls: Presence, Master Volume, Bass, Middle, Treble,
• Mid Gain (Off/On)

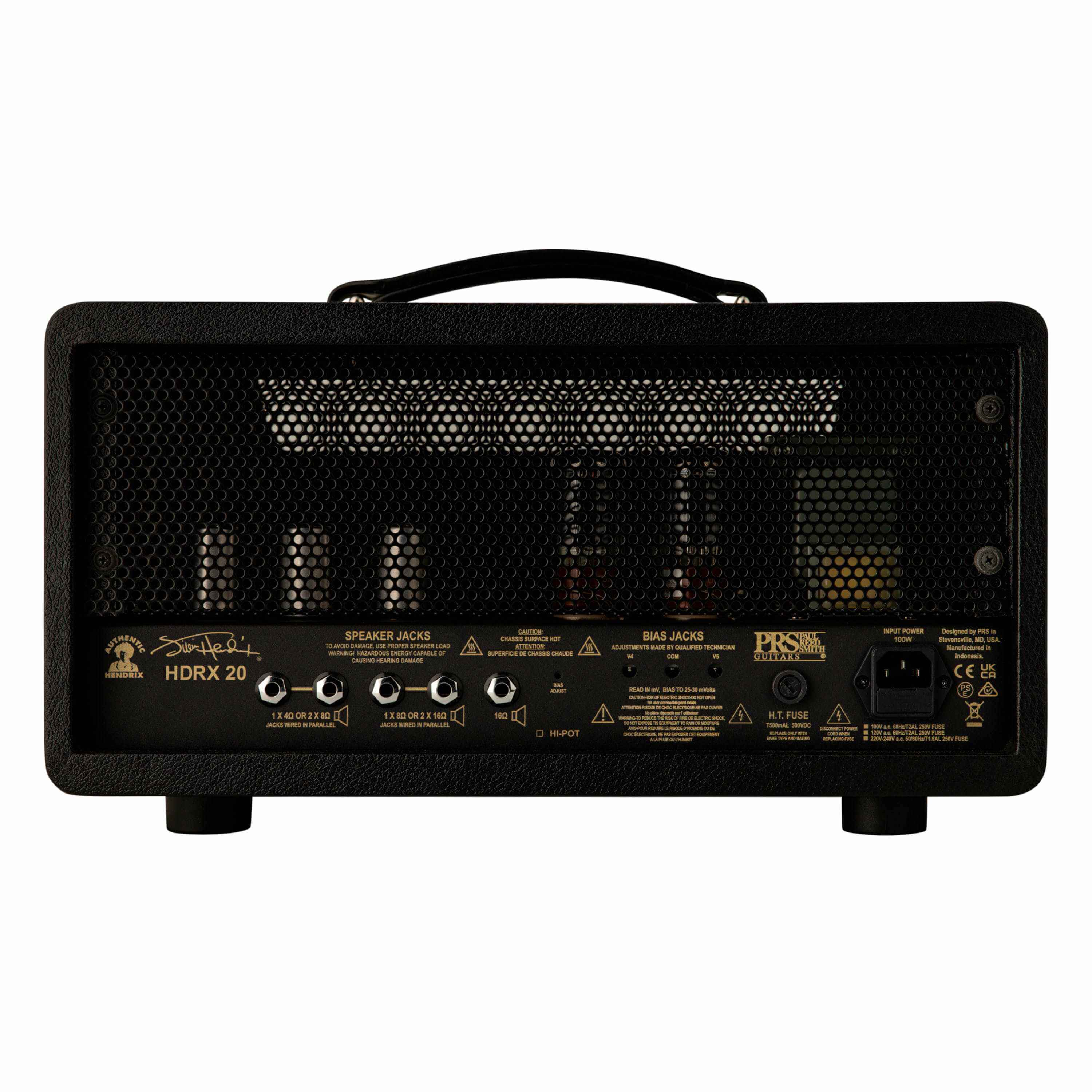

Back Panel Features

• Inlet: IEC with Integrated Fuse
• Output Jack Configuration/Ohm Selection: 2x4, 2x8, 1x16
• Bias: Adjustable (accessible bias monitor jacks and adjustment potentiometer)
• Channels: 2, Internally Bridged
• B+ Fuse Holder: T500mAL/500V Fuse

Materials/Covering

• Covering: Black Tolex
• Piping: Black
• Trim Panel: Black Tolex

Measurements

• Amp Width: 17.25"
• Amp Depth: 9"
• Amp Height: 9"
• Amp Weight: 27.6 lbs
